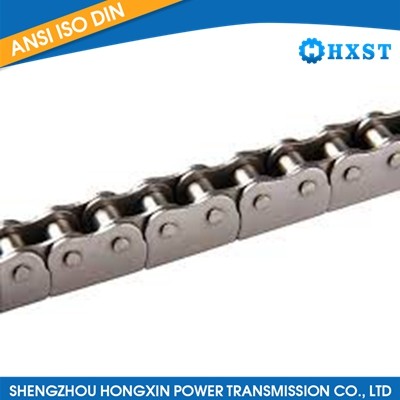

MT series Conveyor Chain

MT series conveyor chain is kind of conveyor chains.The main specification is MT28,MT40,MT56,MT80,MT112,MT160 etc.

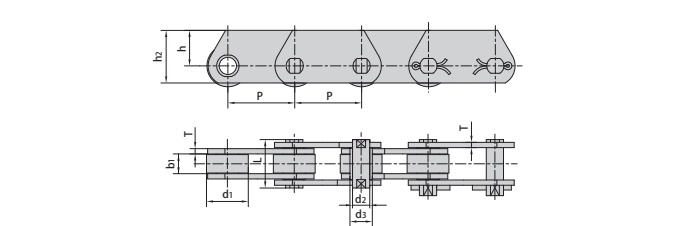

Chain No.	Ultimate Tensile Strength (Kn)	Pitch Pmm	Width Between Inner Plate B1 min mm	Pin Dimension d2 max mm	Pin Length LMax mm	Plate Thickness TMax mm	Roller DiameterD1 Max mm	Bush Diameter D3 max mm	Plate depth
									H2 Max mm	h Max mm
MT20	20	40	16.0	6.0	35.0	2.5	25.0	9.0	25.0	16.0
		50
		63
		80
		100
		125
		160
MT28	28	50	18.0	7.0	40.0	3.0	30.0	10.0	30.0	20.0
		63
		80
		100
		125
		160
		200
MT40	40	63	20.0	8.5	45.0	3.5	36.0	12.5	35.0	22.5
		80
		100
		125
		160
		200
		250
MT56	56	63	24.0	10.0	52.0	4.0	42.0	15.0	45.0	30.0
		80
		100
		125
		160
		200
		250
MT80	80	80	28.0	12.0	62.0	5.0	50.0	18.0	50.0	32.5
		100
		125
		160
		200
		250
		315
MT112	112	80	32.0	15.0	73.0	6.0	60.0	21.0	60.0	40.0
		100
		125
		160
		200
		250
		315
		400
MT160	160	100	37.0	18.0	85.0	7.0	70.0	25.0	70.0	45.0
		125
		160
		200
		250
		315
		400
		500
MT224	224	125	43.0	21.0	98.0	8.0	85.0	30.0	90.0	60.0
		160
		200
		250
		315
		400
		500
		630
MT315	315	160	48.0	25.0	112.0	10.0	50.0	36.0	100.0	65.0
		200
		250
		315
		400
		500
		630
MT450	450	200	56.0	30.0	135.0	12.0	60.0	42.0	120.0	80.0
		250
		315
		400
		500
		630
		800
