Thrust ball bearing

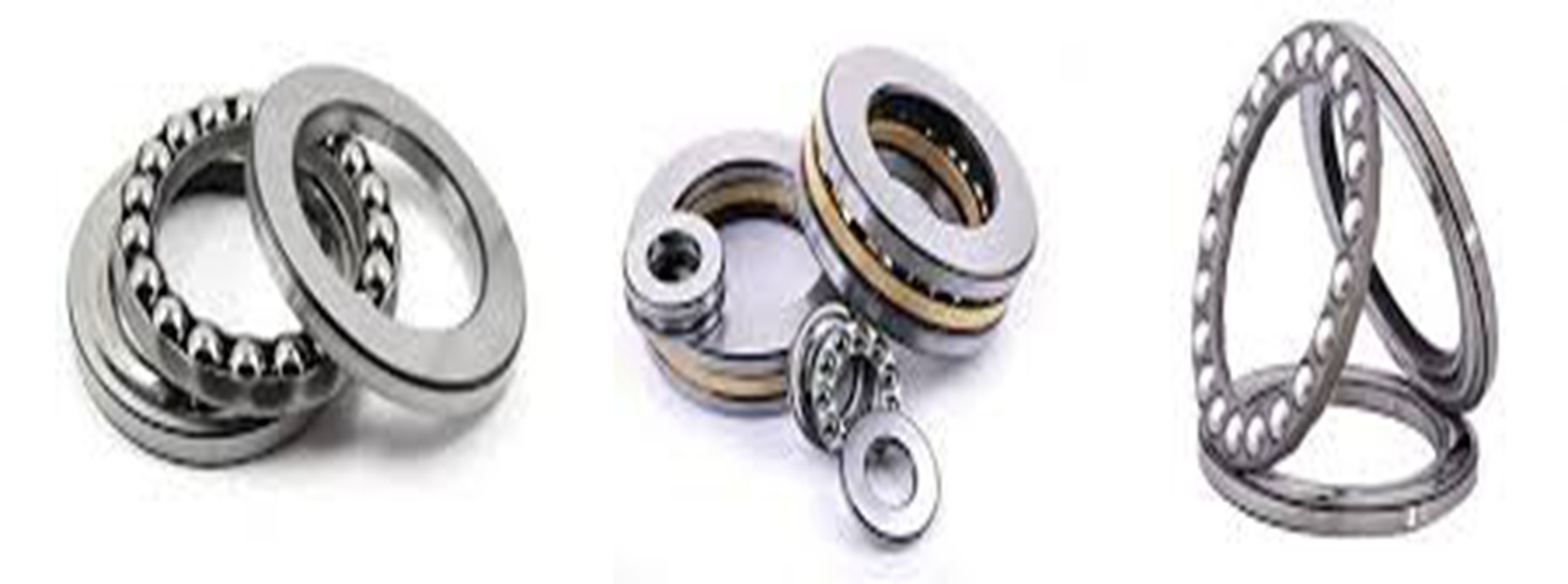

Thrust ball bearings are specialized types of bearings designed to handle axial loads, also known as thrust loads. They consist of bearing balls supported within a ring, which allows for the bearings to accommodate thrust forces in a single direction.

Thrust ball bearings can be classified based on various factors, such as the type of design, size, and load-carrying capacity. Here are some common classifications of thrust ball bearings:

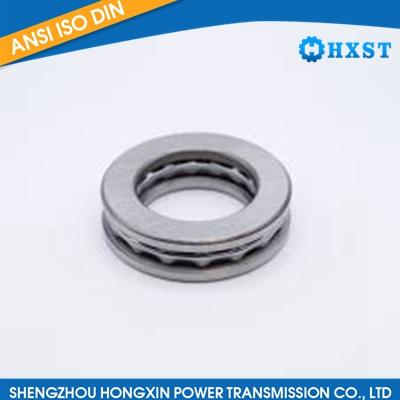

1. Single direction thrust ball bearings: These bearings can accommodate axial loads in one direction and consist of a flat washer, a housing washer, and a ball and cage assembly.

2. Double direction thrust ball bearings: These bearings can accommodate axial loads in both directions and consist of two housing washers, one flat washer, and two ball and cage assemblies.

3. Spherical thrust ball bearings: These bearings have spherical seating to allow for misalignment and are often used in applications where shaft deflection is present.

4. Self-aligning thrust ball bearings: These bearings have the ability to accommodate misalignment and are designed to operate under higher speeds and lower noise levels.

5. Cylindrical thrust ball bearings: These bearings have cylindrical rollers instead of balls and are used in applications where high radial load capacity is required in addition to thrust load capacity.

Thrust ball bearings are commonly used in applications such as automotive transmissions, gearbox assemblies, and conveyor systems. When choosing a thrust ball bearing for a specific application, it is important to consider factors such as load capacity, speed, operating temperature, and lubrication requirements.
