60B-2 Duplex Taper lock Sprocket
  1. 60B-2 Duplex Taper lock Sprocket

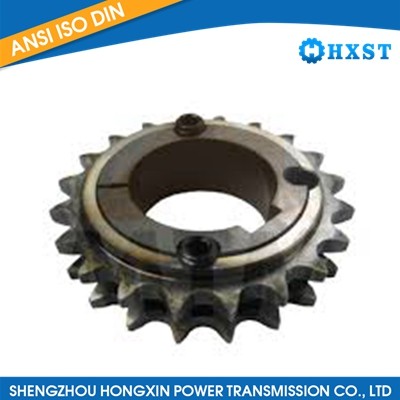

60B-2 Duplex Taper lock Sprocket

Product Item:HXST-092

Model: 60B-2 Duplex Taper lock Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

double 60 sprocket , double 60 chain sprocket , 60b sprocket , taper lock sprocket
Send InquiryLive chat

Description

60B-2 Duplex Taper lock Sprocket is a type of sprocket used in power transmission systems. It belongs to the 60B series of sprockets, which are designed to work with British Standard (BS) roller chains.

The "60B-2" designation refers to the specific chain size and configuration that this sprocket is compatible with. In this case, it is designed for use with a 3/4-inch pitch BS roller chain, which has two strands side by side (hence the "2" in the designation).

The term "Duplex" indicates that this sprocket has dual sets of teeth to accommodate the two strands of the roller chain, allowing for increased load-carrying capacity compared to a single-strand sprocket.

Lastly, the "Taper lock" feature refers to the method of installation. Taper lock sprockets have a tapered bore and are secured onto a shaft using a locking device, such as a locking bush or a taper lock bushing. This provides a secure and reliable connection between the sprocket and the shaft, preventing slippage during operation.
