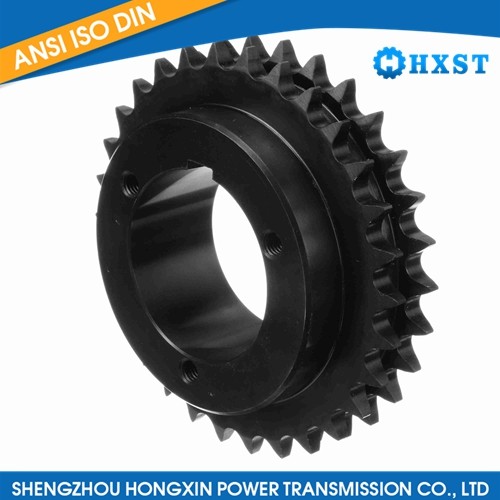

100B-2 Sprockets With Split Taper Bushing

Product Item:HXST-113

Model:100B-2 Sprockets With Split Taper Bushing

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Description

100B-2 sprockets with split Taper Bushing are a specific type of sprocket commonly used in power transmission systems. Here are some key details about them:

Sprocket Type: The "100B-2" indicates the sprocket size and configuration. The "100" represents the pitch diameter of the sprocket in inches, and the "-2" signifies that it has two strands or rows of teeth.

Split Taper Bushing: The split taper bushing is a mechanical component used for mounting the sprocket onto a shaft. It features a tapered inner bore that matches the taper on the shaft. The split design allows for easy installation and removal without disassembling other components of the drive system.

Benefits: Using split taper bushings with these sprockets offers advantages such as quick and easy installation, improved concentricity, reduced downtime for maintenance or replacement, and the ability to accommodate different shaft sizes using the same sprocket.

Applications: The 100B-2 sprockets with split taper bushings find application in various industrial settings where power transmission is required. They are commonly used in conveyor systems, material handling equipment, agricultural machinery, and other applications involving two strands of chains for power transmission.

Maintenance: Regular inspection and lubrication of the sprocket and chain assembly are important for optimal performance and longevity. Additionally, periodic checks should be conducted to ensure proper alignment and tension of the chains.
