Product Item:HXST-278

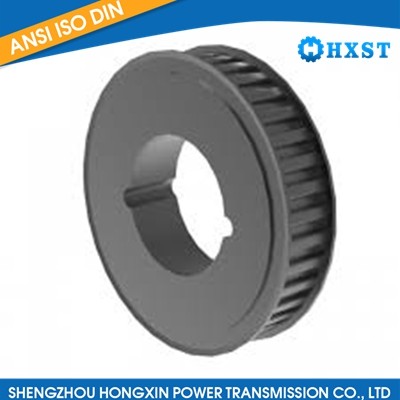

Model:HTP 14M-40 Taper Bore Timing Pulley
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
HTP 14M-40 Taper Bore Timing Pulley is a specific type of timing pulley used in power transmission systems. Here's some information about this particular pulley:
Size: The designation "14M-40" indicates the pitch size and belt length. In this case, it refers to a 14mm pitch size and a belt length of 40 teeth.
Taper Bore: As mentioned in previous examples, the taper bore feature means that the pulley has a tapered inner bore, allowing for easy installation and removal using a locking device.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Timing Belt Compatibility: The 14M-40 designation corresponds to a specific tooth profile and pitch size, which must match with the corresponding timing belt for proper operation and synchronization in the power transmission system.
Application: Timing pulleys are commonly used in various industrial applications such as conveyors, robotics, printing machinery, and CNC machines where precise motion control and synchronization are essential.
14M
PITCH -14 mm
FOR BELT WIDTH - 40 mm
| Code | Type | Material | Teeth | Buss | Hole max | dp | de | Df | Dm | Di | F | L | R | n◦ flange |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TL 28 14M 40 | 18F | St | 28 | 2012 | 50 | 124,78 | 122,12 | 127 | 94 | 54 | 32 | 11 | 400 | |
| TL 30 14M 40 | 18F | St | 30 | 2012 | 50 | 133,69 | 130,99 | 138 | 98 | 54 | 32 | 11 | 401 | |
| TL 32 14M 40 | 18F | St | 32 | 2012 | 50 | 142,60 | 139,88 | 154 | 108 | 54 | 32 | 11 | 403 | |
| TL 34 14M 40 | 18F | St | 34 | 2517 | 60 | 151,52 | 148,79 | 160 | 110 | 54 | 45 | 4,5 | 404 | |
| TL 36 14M 40 | 18F | St | 36 | 2517 | 60 | 160,43 | 157,68 | 168 | 120 | 54 | 45 | 4,5 | 405 | |
| TL 38 14M 40 | 18F | St | 38 | 2517 | 60 | 169,34 | 166,60 | 183 | 130 | 54 | 45 | 4,5 | 406 | |
| TL 40 14M 40 | 18F | St | 40 | 2517 | 60 | 178,25 | 175,49 | 188 | 138 | 54 | 45 | 4,5 | 407 | |
| TL 44 14M 40 | 18F | St | 44 | 3020 | 75 | 196,08 | 193,28 | 211 | 155 | 54 | 51 | 1,5 | 411 | |
| TL 48 14M 40 | 18F | St | 48 | 3020 | 75 | 213,90 | 211,11 | 226 | 170 | 54 | 51 | 1,5 | 412 | |
| TL 56 14M 40 | 18F | GG | 56 | 3020 | 75 | 249,55 | 246,76 | 256 | 208 | 54 | 51 | 1,5 | 416 | |
| TL 64 14M 40 | 19F | GG | 64 | 3020 | 75 | 285,21 | 282,41 | 296 | 170 | 240 | 54 | 51 | 1,5 | 418 |
| TL 72 14M 40 | 19 | GG | 72 | 3020 | 75 | 320,86 | 318,06 | 170 | 280 | 54 | 51 | 1,5 | ||
| TL 80 14M 40 | 20 | GG | 80 | 3020 | 75 | 356,51 | 353,71 | 170 | 315 | 54 | 51 | 1,5 | ||
| TL 90 14M 40 | 20 | GG | 90 | 3020 | 75 | 401.07 | 398.28 | 170 | 360 | 54 | 51 | 1,5 | ||
| TL 112 14M 40 | 20 | GG | 112 | 3020 | 75 | 499.11 | 496.32 | 170 | 457 | 54 | 51 | 1,5 | ||
| TL 144 14M 40 | 20 | GG | 144 | 3020 | 75 | 641.71 | 638.92 | 170 | 600 | 54 | 51 | 1,5 | ||
| TL 168 14M 40 | 20 | GG | 168 | 3020 | 75 | 748.66 | 745.87 | 170 | 706 | 54 | 51 | 1,5 | ||
| TL 192 14M 40 | 20 | GG | 192 | 3020 | 75 | 855.62 | 852.82 | 170 | 813 | 54 | 51 | 1,5 |
