BLPD-315T Semi Closed Single Point Press
  1. BLPD-315T Semi Closed Single Point Press

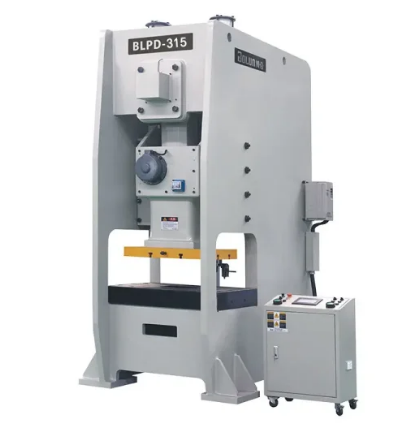

BLPD-315T Semi Closed Single Point Press

Product Item:HXST-5025

Model: BLPD-315T Semi Closed Single Point Press

Mechanical Press: Relies on mechanical means, such as gears and flywheels, to deliver force to the workpiece.

Delivery period: 45-60 Day

Packing: Exit wooden box

BLPD-315T Semi Closed Single Point Press
Send InquiryLive chat

Description

Main Properties


High rigidity
1. High-rigidity, high-precision frame, welded by steel plates, and heat-treated to eliminate pressure in the bed.

2. The structural parts are evenly loaded and rigidly balanced.

Center of gravity balance


The transmission center and the overall center of the machine are aligned to ensure accurate and stable stamping.

The slider balancing device is located at the same center as the slider, ensuring balanced operation of the machine and even stress on the slider itself, making operation accuracy more stable.

The transmission center and the overall center of the machine are aligned to ensure accurate and stable stamping.

The slider balancing device is located at the same center as the slider, ensuring balanced operation of the machine and even stress on the slider itself, making operation accuracy more stable.

Stable and safe operation


The highly sensitive clutch/brake device, coupled with an efficient dual solenoid valve and overload protection device, ensures the accuracy and safety of the movement and stop of the press slider.

Slider adjustment mechanism

The adjustment precision is as high as 0.1mm, making the adjustment and production safer and faster.

High accuracy

Crankshaft, Gear, transmission shaft, and other friction parts are hardened and heat treated before grinding, with high wear resistance and balance, and stable performance.
Processing automation

It can be combined with any automatic feeding mechanism to automate production, reduce costs, and improve efficiency.

Environmental protection and energy conservation

Moreover, it has a beautiful appearance, low noise, low consumption, and energy saving. Its smooth and concise appearance can better reflect advanced design concepts

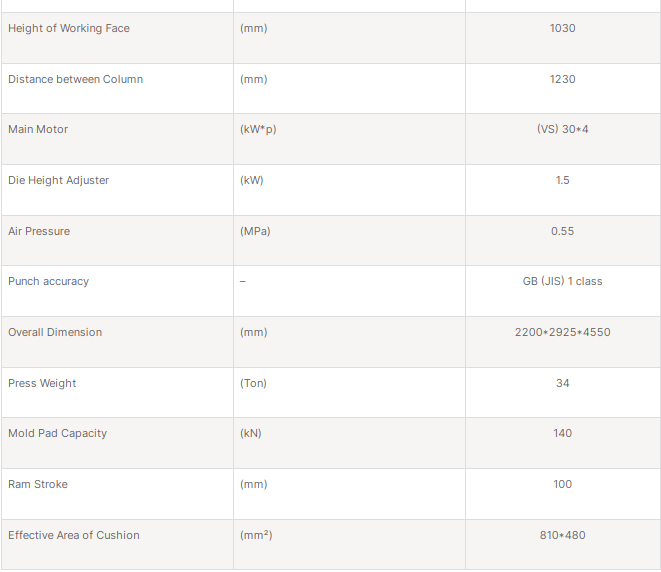

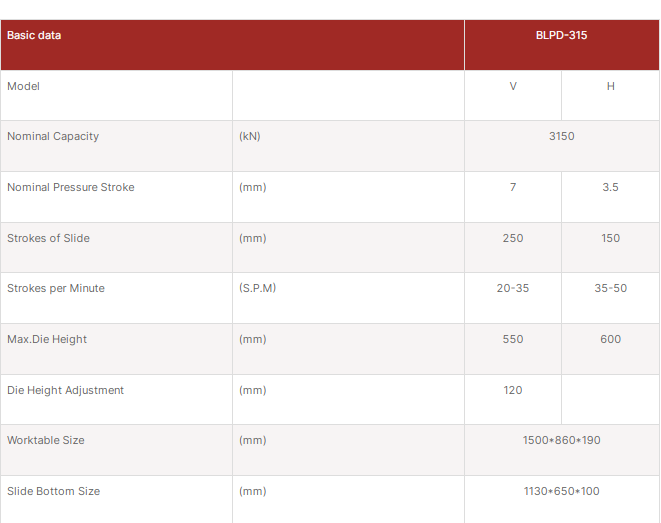

Technical Parameters
