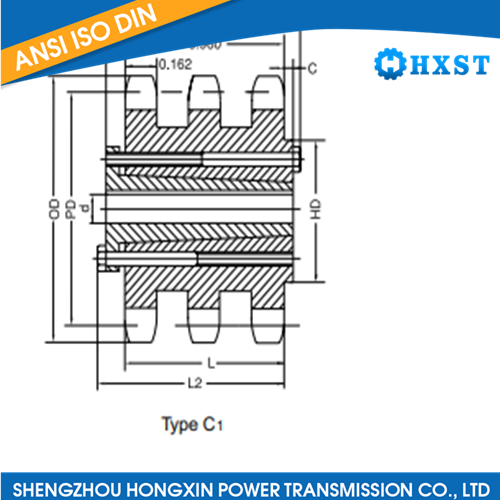

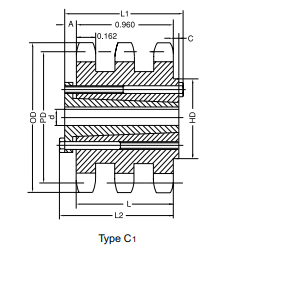

40B-3 Triple Sprockets With Split Taper Bushing

Product Item:HXST-109

Model:40B-3 Triple Sprockets With Split Taper Bushing

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Description

"40B-3 Triple Sprockets with Split Taper Bushing" refers to a specific type of sprocket used in mechanical power transmission systems. Let's break down the components of this term:

40B-3: This indicates the sprocket size and type. The number "40" represents the pitch diameter of the sprocket in inches (in this case, 40/8 = 5 inches), and "B" represents the chain size or pitch (in this case, a British Standard chain). The "-3" signifies that it is a triple-strand sprocket, meaning it has three sets of teeth for engaging with three separate chains.

Triple Sprockets: Unlike single or double-strand sprockets, triple sprockets have three sets of teeth side by side, allowing them to engage with three separate chains simultaneously. This configuration is used in applications where triple power transmission is required.

Split Taper Bushing: A split taper bushing is a component used for mounting sprockets onto a shaft. It consists of a tapered sleeve with a split along its length, allowing it to be easily mounted and dismounted from the shaft by tightening or loosening screws. The split taper bushing provides a secure connection between the sprocket and the shaft.
