T5-27 Timing Pulley
  1. T5-27 Timing Pulley

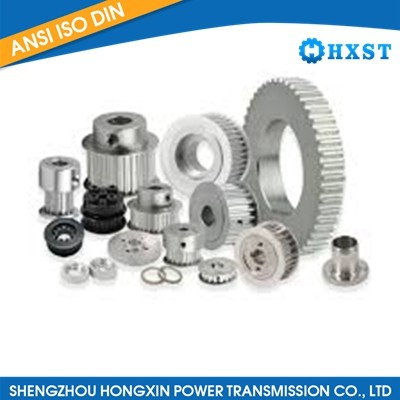

T5-27 Timing Pulley

Product Item:HXST-238

Model:T5-27 Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

t5 timing belt pulley , t5 timing pulleys , timing idler pulley
Send InquiryLive chat

Description

T5-27 Timing Pulley is a specific type of timing pulley used in power transmission systems. Here's some information about this particular pulley:
Size: The designation "T5-27" indicates the tooth profile and belt length. In this case, it refers to a T (Tooth) tooth profile and a belt length of 27 teeth.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Belt Profile Compatibility: The T5 designation corresponds to a specific tooth profile, which must match with the corresponding timing belt that also has a T5 profile for proper operation and synchronization in the power transmission system.
Application: Timing pulleys are commonly used in various industrial applications where precise motion control and synchronization are required, such as conveyors, robotics, printing machinery, and CNC machines.



TIMING PULLEYS T5-27


T5-27

SPC TYPE Z De Df Dm F L d
27-T5-10 2F 10 15.05 19.5 8 21 27 6
27-T5-12 2F 12 18.25 23 10 21 27 6
27-T5-14 2F 14 21.45 25 13 21 27 6
27-T5-15 2F 15 23.05 28 16 21 27 6
27-T5-16 2F 16 24.6 32 18 21 27 6
27-T5-18 2F 18 27.8 32 20 21 27 6
27-T5-19 2F 19 29.4 37 22 21 27 6
27-T5-20 2F 20 31 37 23 21 27 6
27-T5-22 2F 22 34.25 38 24 21 27 6
27-T5-24 2F 24 37.4 43 26 21 27 6
27-T5-25 2F 25 38.95 44 26 21 27 6
27-T5-26 2F 26 40.6 44 26 21 27 6
27-T5-27 2F 27 42.2 48 30 21 27 8
27-T5-28 2F 28 43.75 48 32 21 27 8
27-T5-30 2F 30 46.95 51 34 21 27 8
27-T5-32 2F 32 50.1 54 38 21 27 8
27-T5-36 2F 36 56.45 61 38 21 27 8
27-T5-40 2F 40 62.85 67 40 21 27 8
27-T5-42 2F 42 66 70 40 21 27 8
27-T5-44 2 44 69.2 - 45 21 27 8
27-T5-48 2 48 75.55 - 50 21 27 8
27-T5-60 2 60 94.65 - 65 21 27 8
