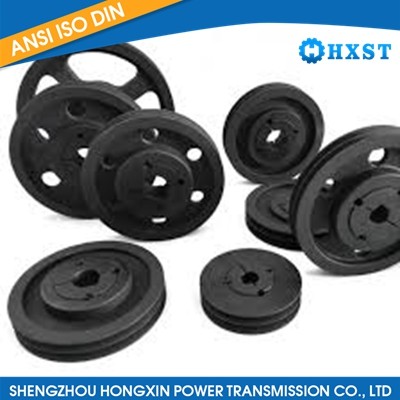

SPC-8 Taper Bore Pulley

Description

SPC-8 taper bore pulley is a specific type of pulley that features a taper bore design for easy and secure mounting onto a shaft. It is commonly used in power transmission systems where accurate speed ratios and motion control are required.

Here are some key features of the SPC-8 taper bore pulley:

Size: The "SPC-8" designation indicates that the pulley is designed to work with SPC (Super Power Curve) section belts, which have a specific width and pitch. The number "8" refers to the number of grooves on the pulley.

Taper Bore: The taper bore design allows the pulley to be mounted securely onto a shaft using a Taper Bushing. The taper bore typically has a tapered inner surface that matches the taper of the bushing, providing a tight and secure fit. This eliminates the need for additional keyways or set screws.

Quick Installation/Removal: The taper bore design enables quick and easy installation or removal of the pulley from a shaft. By tightening or loosening the screws on the taper bushing, the pulley can be securely attached or detached.

Material: Taper bore pulleys are commonly made from materials such as cast iron or steel, which offer durability and strength to handle power transmission requirements.

Applications: The SPC-8 taper bore pulley is commonly used in various power transmission applications, including machinery, industrial equipment, and automotive systems. It is suitable for systems that require precise speed ratios and torque transfer.

Product details

TAPER BORE PULLEYS SPC-8

SPC-8

PART NO. P.D O.D TYPE BUSH NO. MAX BORE E F J K L M N spc 200-8 200.0 209.6 3 3535 90 - 213 148 62 89 62 - spc 212-8 212.0 221.6 3 3535 90 - 213 160 62 89 62 - spc 224-8 224.0 233.6 3 3535 90 - 213 170 62 89 62 - spc 236-8 236.0 245.6 3 3535 90 - 213 184 62 89 62 - spc 250-8 250.0 259.6 3 3535 90 - 213 198 62 89 62 - spc 265-8 265.0 274.6 3 3535 90 - 213 213 62 89 62 - spc 280-8 280.0 289.6 3 3535 90 - 213 228 62 89 62 - spc 300-8 300.0 309.6 3 4040 100 - 213 247 55.5 102 55.5 - spc 315-8 315.0 324.6 3 4040 100 - 213 258 55.5 102 55.5 - spc 335-8 335.0 344.6 6 4040 100 - 213 280 55.5 102 55.5 - spc 355-8 355.0 364.6 3 4040 100 - 213 304 55.5 102 55.5 - spc 375-8 375.0 384.6 3 4545 110 - 213 324 49.5 114 49.5 - spc 400-8 400.0 409.6 6 4545 110 20 213 348 49.5 114 49.5 220 spc 425-8 425.0 434.6 6 5050 125 30 213 369 43 127 43 245 spc 450-8 450.0 459.6 6 5050 125 30 213 394 43 127 43 245 spc 475-8 475.0 484.6 6 5050 125 30 213 419 43 127 43 245 spc 500-8 500.0 509.6 6 5050 125 30 213 444 43 127 43 245 spc 530-8 530.0 539.6 6 5050 125 30 213 474 43 127 43 245 spc 560-8 560.0 569.6 5 5050 125 - 213 504 43 127 43 245 spc 630-8 630.0 639.6 5 5050 125 - 213 574 43 127 43 245 spc 710-8 710.0 719.6 5 5050 125 - 213 656 43 127 43 245 spc 800-8 800.0 809.6 5 5050 125 - 213 737 43 127 43 245 spc 1000-8 1000.0 1009.6 5 5050 125 - 213 937 43 127 43 245 spc 1250-8 1250.0 1259.6 5 5050 125 - 213 1187 43 127 43 245
