AT10-66 Timing Pulley
  1. AT10-66 Timing Pulley

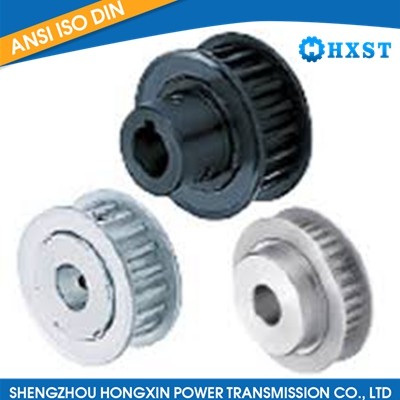

AT10-66 Timing Pulley

Product Item:HXST-253

Model:AT10-66 Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

AT10-66 Timing Pulley , at10 timing pulley , at10 timing belt pulley , at10 pulley , 32at10 timing belt
Send InquiryLive chat

Description

AT10-66 Timing Pulley is a specific type of timing pulley used in power transmission systems. Here's some information about this particular pulley:

Size: The designation "AT10-66" indicates the tooth profile and belt length. In this case, it refers to an AT (Alpha Timing) tooth profile and a belt length of 66 teeth.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Belt Profile Compatibility: The AT10 designation corresponds to a specific tooth profile, which must match with the corresponding timing belt that also has an AT10 profile for proper operation and synchronization in the power transmission system.
Application: Timing pulleys are commonly used in various industrial applications where precise motion control and synchronization are required, such as conveyors, robotics, printing machinery, and CNC machines.


Product details

TIMING PULLEYS AT 10-66


AT10-66

SPC TYPE Z De Df Dm F L d
<66-AT10-18 <2F <18 <55.45 <60 <40 <56 <66 <10
<66-AT10-19 <2F <19 <58.65 <67 <44 <56 <66 <10
<66-AT10-20 <2F <20 <61.8 <67 <46 <56 <66 <12
<66-AT10-22 <2F <22 <68.2 <75 <52 <56 <66 <12
<66-AT10-24 <2F <24 <74.55 <83 <58 <56 <66 <12
<66-AT10-25 <2F <25 <77.75 <83 <60 <56 <66 <12
<66-AT10-26 <2F <26 <80.9 <87 <60 <56 <66 <12
<66-AT10-27 <2F <27 <84.05 <91 <60 <56 <66 <12
<66-AT10-28 <2F <28 <87.25 <94 <60 <56 <66 <12
<66-AT10-30 <2F <30 <93.65 <97 <60 <56 <66 <12
<66-AT10-32 <2F <32 <100 <112 <65 <56 <66 <12
<66-AT10-36 <2F <36 <112.75 <120 <70 <56 <66 <16
<66-AT10-40 <2F <40 <125.45 <135 <80 <56 <66 <16
<66-AT10-44 <2 <44 <138.2 <- <88 <56 <66 <16
<66-AT10-48 <2 <48 <150.95 <- <95 <56 <66 <16
<66-AT10-60 <2 <60 <189.15 <- <110 <56 <66 <16
