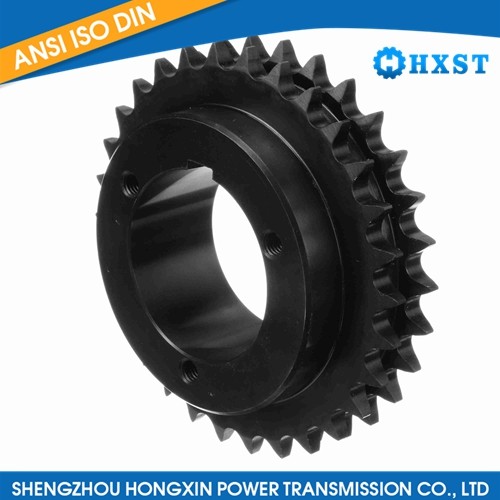

80B-2 Sprockets With Split Taper Bushing
  1. 80B-2 Sprockets With Split Taper Bushing

80B-2 Sprockets With Split Taper Bushing

Product Item:HXST-112

Model:80B-2 Sprockets With Split Taper Bushing

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

80B-2 Sprockets With Split Taper Bushing , split taper sprocket , split taper bushing dimensions
Send InquiryLive chat

Description

The "80B-2 Sprockets With Split Taper Bushing" refers to a specific type of sprocket size and configuration. Let's break it down:

"80B": This indicates the pitch of the sprocket, which is measured in inches. In this case, the pitch is 0.625 inches.
"-2": This denotes the number of strands on the sprocket. In this case, there are two strands.


"Sprockets with Split Taper Bushing" means that the sprocket is designed to be mounted onto a shaft using a split taper bushing. A split taper bushing is a mechanical component that allows for easy installation and removal of sprockets without the need for extensive disassembly.
