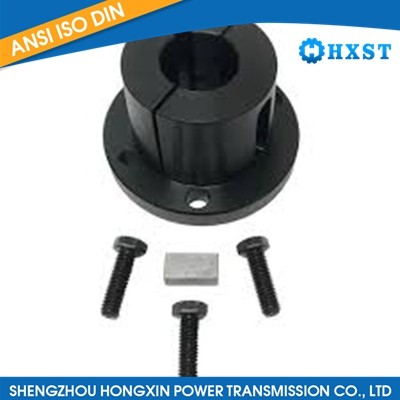

Split Taper Bushing
  1. Split Taper Bushing

Split Taper Bushing

Product Item:HXST-319

Model:Split Taper Bushing

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Split Taper Bushing , h 1-1/4 split taper bushing , browning split taper bushing installation , what is a split taper bushing , split taper bushing manufacturer
Send InquiryLive chat

Description

split Taper Bushing is a type of bushing that is used for mounting components onto a shaft. Here are some key details about split taper bushings:

Function: Split taper bushings provide a secure and tight fit between a component, such as a pulley or sprocket, and a shaft. They facilitate the transfer of torque from the shaft to the component.

Split Design: Split taper bushings have a split along their length, allowing them to be easily installed and removed from the shaft without having to disassemble the entire system. The split design enables the bushing to be clamped tightly around the shaft when it is tightened.

Tapered Bore: Split taper bushings have a tapered bore that matches the taper of the component being mounted. The taper ensures a precise fit and enhances torque transmission capabilities.

Construction and Material: Split taper bushings are commonly made from steel or other suitable alloys to provide strength and durability. The material choice depends on factors such as load capacity, operating conditions, and environmental considerations.

Installation: To install a split taper bushing, the two halves of the bushing are placed around the shaft, aligning the split ends. As the screws or bolts are tightened, the bushing grips the shaft tightly, creating a secure connection between the shaft and the component.

Applications: Split taper bushings are widely used in various industrial applications where components need to be mounted securely onto shafts. They are commonly found in power transmission systems, conveyor systems, machinery, and equipment that require precise torque transfer.

Maintenance: Regular inspection for wear, damage, or any signs of loosening is important to maintain the integrity of the connection. Proper tightening of the screws or bolts is crucial to ensure a secure fit
