35B-2 NK Double Sprocket
  1. 35B-2 NK Double Sprocket

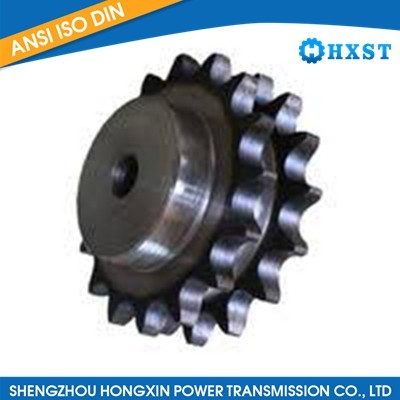

35B-2 NK Double Sprocket

Product Item:HXST-152

Model:35B-2 NK Double Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

35B-2 NK Double Sprocket , 35b sprocket , 35b20 sprocket
Send InquiryLive chat

Description

35B-2 NK Double Sprocket is a specific type of sprocket that falls under the NK series. Here are some key features of the 35B-2 NK double sprocket:

Double Sprocket Design: The "double" designation indicates that the sprocket has two sets of teeth, allowing it to engage with two separate roller chains simultaneously.

35B-2 Designation: The "35B-2" designation specifies the specific model or part number for the double sprocket. It may include information about the tooth count, bore size, and other relevant specifications.

NK Series: The NK series refers to a line of sprockets produced by the manufacturer. Each model within the series has its own unique features and specifications.

Teeth Configuration: The 35B-2 NK double sprocket will have teeth designed to match the pitch and width of the corresponding roller chains. The tooth profile and configuration ensure proper engagement and smooth operation with the chains.

Applications: Double sprockets like the 35B-2 NK are commonly used in power transmission systems where two roller chains need to be driven simultaneously, such as conveyor systems, industrial machinery, or automotive applications.


Product details (Dimension : inch)

No.
Teeth 		Outside
Diameter
Do 		Bore (Inches) Hub (Inches) Weight
Lbs.
(App)
Stock
d 		Rec.
Max. 		Dia.
BD 		Length
Thru
BL
12 1.630 1/2 9/16 63/64 1 1/4 .32
13 1.750 1/2 11/16 1 7/64 1 1/4 .36
14 1.870 1/2 7/8 1 1/4 1 1/4 .44
15 1.990 1/2 15/16 1 13/32 1 1/4 .56
16 2.110 1/2 15/16 1 15/32 1 1/4 .64
17 2.230 1/2 1 1/16 1 19/32 1 1/4 .74
18 2.350 1/2 1 3/16 1 23/32 1 1/4 .84
19 2.470 1/2 1 5/16 1 7/8 1 1/4 .96
20 2.590 3/4 1 5/16 1 15/16 1 3/8 1.08
21 2.710 3/4 1 3/8 2 1/16 1 3/8 1.24
22 2.830 3/4 1 7/16 2 3/16 1 3/8 1.42
23 2.950 3/4 1 1/2 2 1/4 1 3/8 1.54
24 3.070 3/4 1 1/2 2 1/4 1 3/8 1.62
25 3.190 3/4 1 1/2 2 1/4 1 3/8 1.66
26 3.310 3/4 1 3/4 2 1/2 1 3/8 1.98
30 3.790 3/4 1 3/4 2 1/2 1 3/8 2.34
36 4.510 3/4 1 3/4 2 1/2 1 3/8 3.00
42 5.230 3/4 1 3/4 2 1/2 1 3/8 3.80
48 5.950 3/4 1 3/4 2 1/2 1 3/8 4.66
52 6.430 3/4 1 3/4 2 1/2 1 3/8 5.40
60 7.380 3/4 1 3/4 2 1/2 1 3/8 6.84
