5V QD Sheaves

Product Item:HXST-901

Model: 5V QD Sheaves

Quick Detachable (QD) Design: The QD feature allows for easy installation and removal of the sheave from the shaft. It typically involves a tapered bushing system that provides a secure fit on the sha

Material: These sheaves are typically made from durable materials such as cast iron or steel, which provide strength and resistance to wear and corrosion. The material choice may depend on the specifi

Application Versatility: 5V QD Sheaves find application in various industries, including manufacturing, HVAC systems, power transmission, and more. They are commonly used in belt-driven systems that r

Description

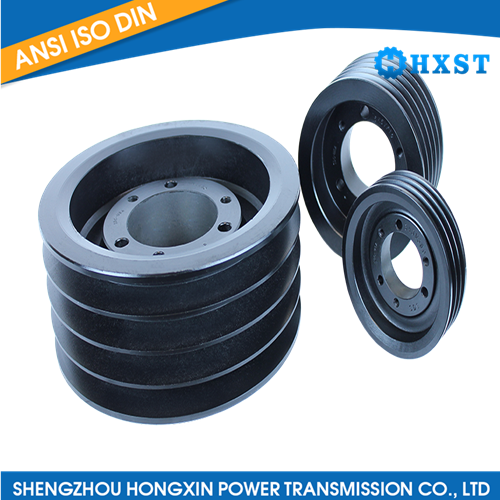

5V QD (Quick Detachable) sheaves are a type of pulley used in belt drive systems, specifically designed to accommodate 5V-section belts. These sheaves feature a quick detachable hub system that allows for easy installation and removal.

Key features of 5V QD sheaves include:

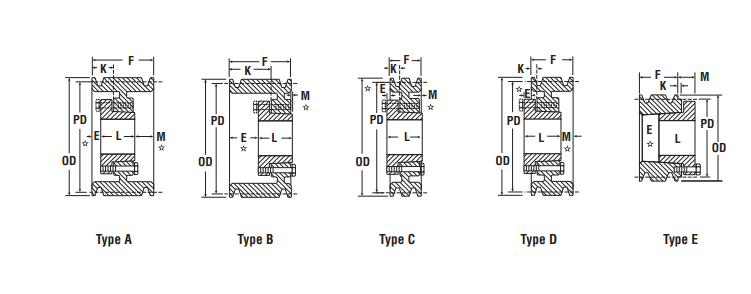

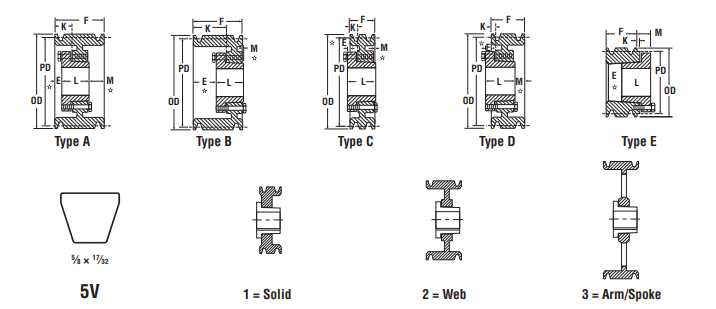

Quick Detachable Hub: The sheave is equipped with a quick detachable hub that enables easy installation and removal from the shaft. This feature simplifies maintenance tasks, such as replacing belts or performing maintenance on the drive system.

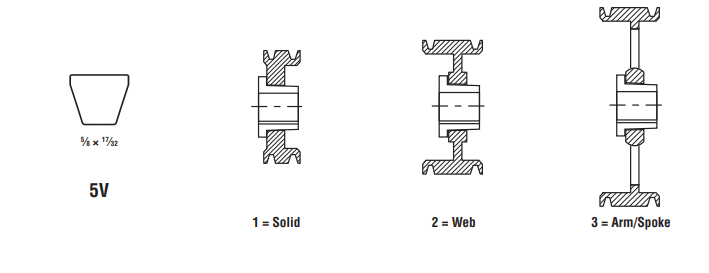

Accommodation of 5V Belts: 5V QD sheaves are specifically designed to work with 5V-section belts. The V-shaped groove on the sheave is deep and wide enough to properly accommodate and grip the 5V belt, minimizing slippage and optimizing power transfer.

Material and Construction: These sheaves are commonly made from durable materials such as cast iron or steel, ensuring strength and durability under varying loads and operating conditions.

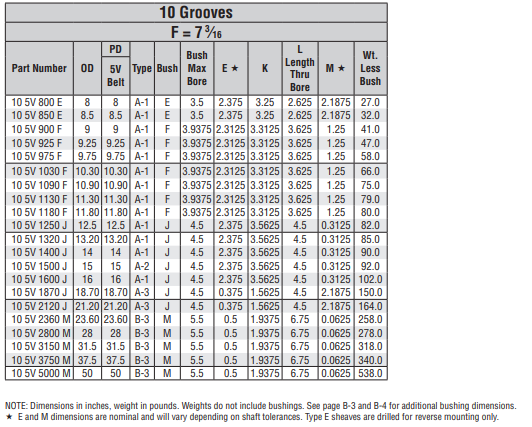

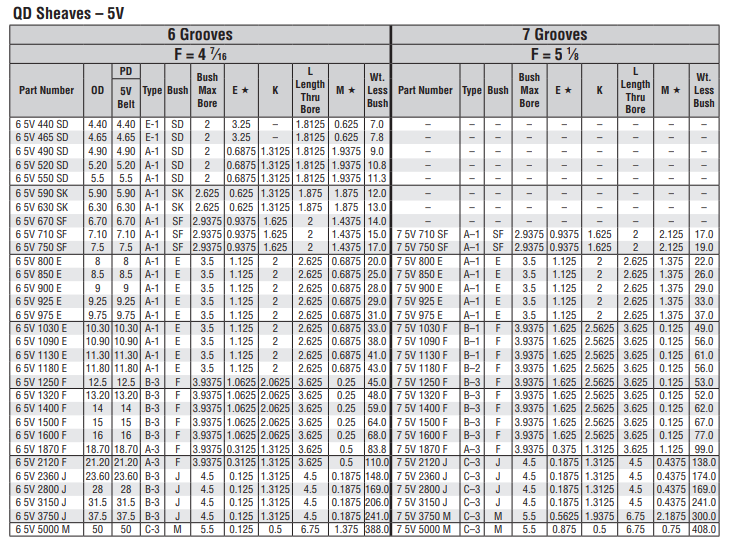

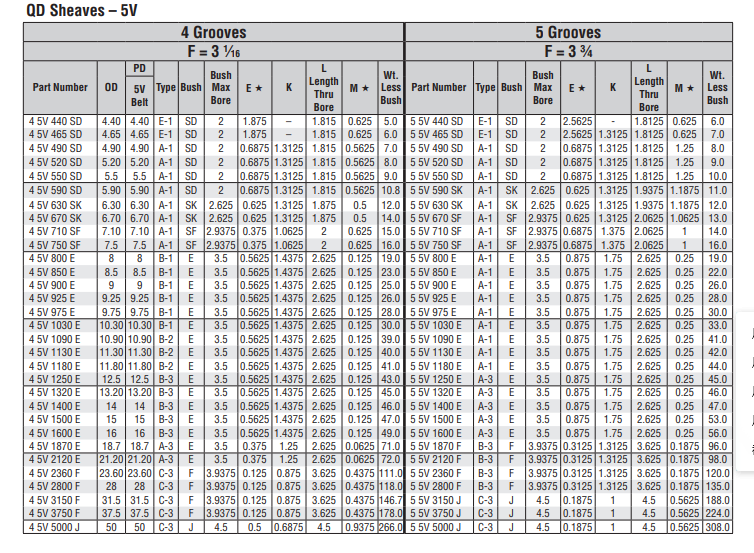

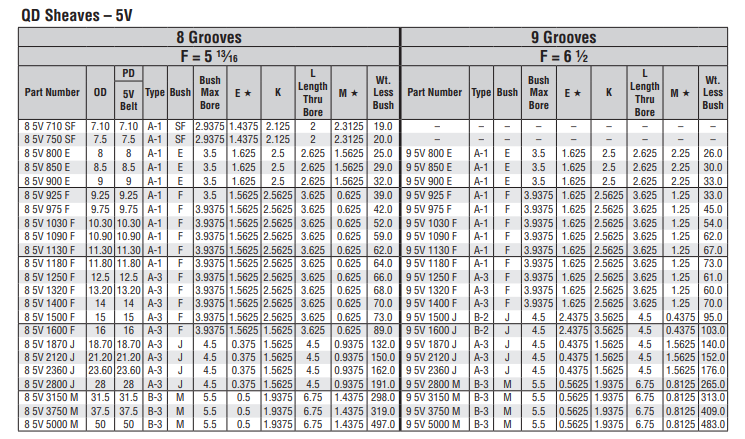

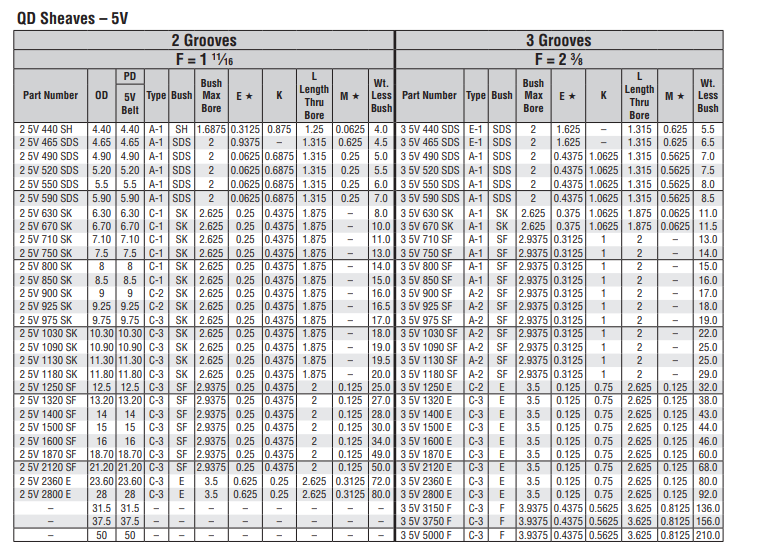

Wide Range of Sizes: 5V QD sheaves are available in various sizes and configurations to suit different belt widths and power requirements. This allows for flexibility in selecting the appropriate sheave for specific applications.

Belt Drive System Applications: 5V QD sheaves are commonly used in industrial applications where moderate power transmission is required. They can be found in applications such as HVAC systems, fans, pumps, compressors, and machinery.

When selecting a 5V QD sheave, it's important to consider factors such as the required speed ratio, power transmission requirements, and the appropriate size compatibility with the 5V belt. Proper installation of the QD hub and regular maintenance, including inspection for wear and correct tensioning of the belt, are crucial for optimal performance and longevity of the sheave and belt drive system.
