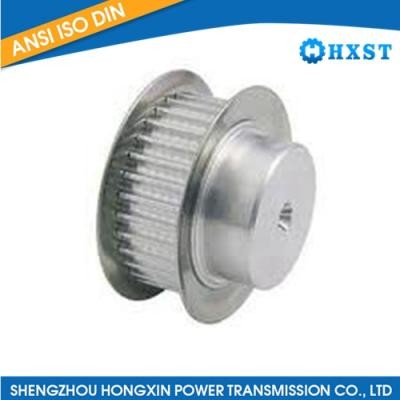

HTP 14M-170 Timing Pulley
  1. HTP 14M-170 Timing Pulley

HTP 14M-170 Timing Pulley

Product Item:HXST-268

Model:HTP 14M-170 Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

14m timing belt , htd timing belt pulleys , htd 14m pulley
Send InquiryLive chat

Description





14M
PITCH - 14 mm
FOR BELT WIDTH - 170 mm

Code Type Material Teeth dp de Df Dm Di F L d n◦ flange
28 14M 170 2F St 28 124,78 122,12 127 100 187 202 32 400
3014M 170 2F St 30 133,69 130,99 138 100 187 202 32 401
32 14M 170 2F St 32 142,60 139,88 154 100 187 202 32 403
34 14M 170 2F St 34 151,52 148,79 160 100 187 202 32 404
36 14M 170 2F St 36 160,43 157,68 168 120 187 202 32 405
38 14M 170 2F St 38 169,34 166,60 183 135 187 202 32 406
40 14M 170 2F St 40 178,25 175,49 188 140 187 202 32 407
44 14M 170 2F St 44 196,08 193,28 211 160 187 202 32 411
48 14M 170 2F St 48 213,90 211,11 226 160 187 202 32 412
56 14M 170 7F GG 56 249,55 246,76 256 160 187 202 32 416
64 14M 170 7F GG 64 285,21 282,41 296 180 187 202 32 418
72 14M 170 8 GG 72 320,86 318,06 180 278 187 187 32
80 14M 170 8 GG 80 356,51 353,71 180 314 187 187 32
90 14M 170 8 GG 90 401,07 398,28 180 358 187 187 38
112 14M 170 8 GG 112 499,11 496,32 200 456 187 187 38
144 14M 170 8 GG 144 641,71 638,92 220 600 187 187 38
168 14M 170 8 GG 168 748,66 745,87 220 706 187 187 38
192 14M 170 8 GG 192 855,62 852,82 220 813 187 187 38
