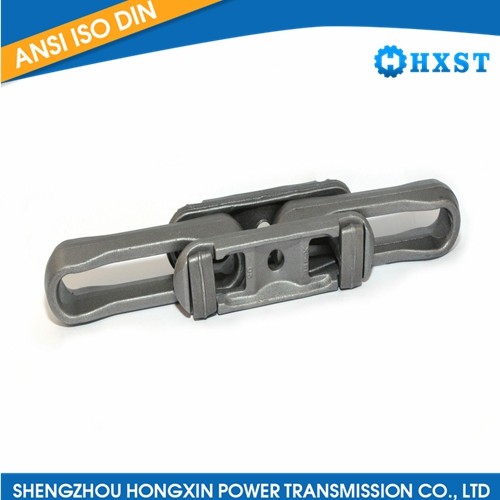

DROP FORGED RIVETLESS CHAINS

Product Item:HXST-291

Model:DROP FORGED RIVETLESS CHAINS

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Description

Drop forged rivetless chains, also known as X-348, X-458, and X-678 chains, are heavy-duty Conveyor Chains commonly used in overhead conveyors for material handling applications. These chains are known for their strength, durability, and ability to withstand demanding operating conditions. Here are some key features and characteristics of drop forged rivetless chains:

Design: Drop forged rivetless chains are designed with special link plates that are drop-forged from high-strength alloy steel. This manufacturing process ensures excellent strength and resistance to wear, making them suitable for heavy-duty applications.

Rivetless Construction: Unlike traditional roller chains that use pins and bushings, drop forged rivetless chains have a unique construction that eliminates the need for separate rivets. The links are connected by integral forged pins, creating a strong and rigid chain structure.

Versatile Attachments: Drop forged rivetless chains can be equipped with various attachments to accommodate different types of loads and applications. Common attachments include trolleys, pusher dogs, scrapers, and attachments for specialized conveyor systems.

High Load Capacity: These chains are designed to handle heavy loads and resist impact forces. They can transport bulk materials, large components, or products on overhead conveyor systems in industries such as automotive, steel, mining, and heavy machinery.

Smooth Operation: Drop forged rivetless chains offer smooth operation due to their precise manufacturing and high-quality components. The absence of separate rivets reduces the risk of chain elongation and ensures consistent performance over extended periods.

Easy Maintenance: While regular maintenance is necessary to ensure optimal performance, drop forged rivetless chains are relatively easy to maintain. Periodic lubrication, inspection of chain tension, and replacement of worn-out components contribute to their longevity and efficiency.
