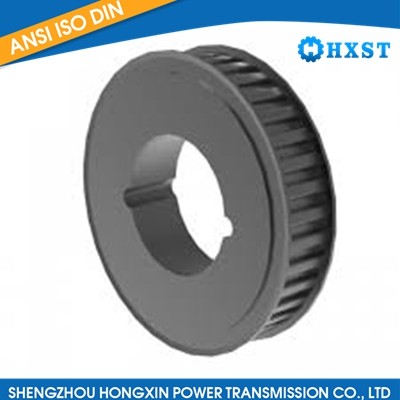

HTP 14M-115 Taper Bore Timing Pulley
  1. HTP 14M-115 Taper Bore Timing Pulley

HTP 14M-115 Taper Bore Timing Pulley

Product Item:HXST-281

Model:HTP 14M-115 Taper Bore Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

HTP 14M-115 Taper Bore Timing Pulley , taper bore pulley , taper lock timing belt pulley , htd 14m pulley
Send InquiryLive chat

Description

HTP 14M-115 Taper Bore Timing Pulley is another specific type of timing pulley used in power transmission systems. Here's some information about this particular pulley:

Size: The designation "14M-115" indicates the pitch size and belt length. In this case, it refers to a 14mm pitch size and a belt length of 115 teeth.
Taper Bore: Similar to the previous example, the taper bore feature means that the pulley has a tapered inner bore, allowing for easy installation and removal using a locking device.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Timing Belt Compatibility: The 14M-115 designation corresponds to a specific tooth profile and pitch size, which must match with the corresponding timing belt for proper operation and synchronization in the power transmission system.
Application: Timing pulleys are commonly used in various industrial applications such as conveyors, robotics, printing machinery, and CNC machines where precise motion control and synchronization are essential


14M
PITCH - 14 mm
FOR BELT WIDTH - 115 mm


Code Type Material Teeth Buss Hole max dp de Df Dm Di F L R n◦ flange
TL 28 14M 115 18F St 28 2517 60 124,78 122,12 127 98 133 45 44 400
TL 30 14M 115 18F St 30 2517 60 133,69 130,99 138 100 133 45 44 401
TL 32  14M 115 18F St 32 2517 60 142,60 139,88 154 108 133 45 44 403
TL 34 14M 115 18F St 34 2517 60 151,52 148,79 160 110 133 45 44 404
TL 36 14M 115 18F St 36 3020 75 160,43 157,68 168 125 133 51 41 405
TL 38 14M 115 18F St 38 3020 75 169,34 166,60 183 130 133 51 41 406
TL 40 14M 115 18F St 40 3020 75 178,25 175,49 188 138 133 51 41 407
TL 44 14M 115 18F St 44 3030 75 196,08 193,28 211 155 133 76 28,5 411
TL 48 14M 115 18F St 48 3030 75 213,90 211,11 226 170 133 76 28,5 412
TL 56 14M 115 18F GG 56 3535 90 249,55 246,76 256 210 133 89 22 416
TL 64 14M 115 19F GG 64 3535 90 285,21 282,41 296 190 240 133 89 22 418
TL 72 14M 115 19 GG 72 3535 90 320,86 318,06 190 280 133 89 22
TL 80 14M 115 20 GG 80 3535 90 356,51 353,71 190 315 133 89 22
TL 90 14M 115 20 GG 90 3525 90 401.07 398.28 190 360 133 89 22
TL 112 14M 115 20 GG 112 3525 90 499.11 496.32 190 457 133 89 22
TL 144 14M 115 20 GG 144 4040 100 641.71 638.92 230 600 133 102 15.5
TL 168 14M 115 20 GG 168 4040 100 748.66 745.87 230 706 133 102 15.5
