SPA-2 Standard Pulley
  1. SPA-2 Standard Pulley

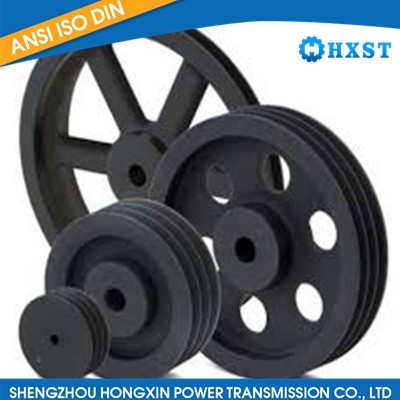

SPA-2 Standard Pulley

Product Item:HXST-178

Model:SPA-2 Standard Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

SPA-2 Standard Pulley , spa pulley sizes , spa pulley dimensions , spa v belt
Send InquiryLive chat

Description

SPA-2 standard pulley is a specific type of pulley that is designed to work with SPA (Super Power Angle) section V-belts. It is commonly used in power transmission systems where accurate speed ratios and motion control are required.

Here are some key features of the SPA-2 standard pulley:

Size: The "SPA-2" designation indicates that the pulley is designed to work with SPA section V-belts, which have a specific width and pitch. The number "2" refers to the number of grooves on the pulley.

Standard Design: The SPA-2 pulley follows the standard design for SPA metric V-belt pulleys. It has a specific groove shape and dimensions to match the corresponding SPA V-belt.

Material: Standard pulleys like the SPA-2 can be made from various materials, including cast iron, steel, or aluminum. The choice of material depends on factors such as load requirements, operating conditions, and cost considerations.

Keyway or Set Screw: Depending on the design, the SPA-2 pulley may include a keyway or set screw mechanism to securely attach it to the shaft. This ensures proper alignment and prevents slippage during operation.

Applications: The SPA-2 standard pulley is commonly used in various power transmission applications, including machinery, industrial equipment, and automotive systems. It is suitable for systems that require precise speed ratios and torque transfer using SPA V-belts.

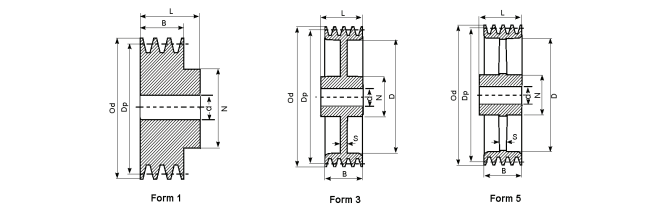

STANDARD BORE PULLEYS SPA-2


SPA-2

PART NO. P.D O.D TYPE N L D E B d
spa 50-2 50.0 55.5 1 40 45 - - 35 10
spa 60-2 60.0 65.5 1 40 45 - - 35 10
spa 71-2 71.0 76.5 1 50 45 - - 35 10
spa 75-2 75.0 80.5 1 50 45 - - 35 10
spa 80-2 80.0 85.5 1 50 45 - - 35 10
spa 85-2 85.0 90.5 1 50 45 - - 35 10
spa 90-2 90.0 95.5 1 60 45 - - 35 15
spa 95-2 95.0 100.5 1 60 45 - - 35 15
spa 100-2 100.0 105.5 1 60 45 - - 35 15
spa 106-2 106.0 111.5 1 60 45 - - 35 15
spa 112-2 112.0 117.5 1 60 45 - - 35 15
spa 118-2 118.0 123.5 1 60 45 - - 35 15
spa 132-2 132.0 137.5 1 60 45 - - 35 15
spa 140-2 140.0 145.5 3 60 45 107 10 35 15
spa 150-2 150.0 155.5 3 60 45 117 10 35 15
spa 160-2 160.0 165.5 3 60 45 127 10 35 15
spa 170-2 170.0 175.5 3 60 50 137 10 35 15
spa 180-2 180.0 185.5 3 70 50 147 12 35 20
spa 200-2 200.0 205.5 3 70 50 167 12 35 20
spa 224-2 224.0 229.5 3 70 50 192 12 35 20
spa 250-2 250.0 255.5 3 75 50 217 12 35 20
spa 280-2 280.0 285.5 5 80 50 247 14 35 20
spa 300-2 300.0 305.5 5 80 50 267 14 35 20
spa 315-2 315.0 320.5 5 80 50 282 14 35 20
spa 355-2 355.0 360.5 5 80 50 322 14 35 20
spa 400-2 400.0 405.5 5 90 50 367 14 35 20
spa 450-2 450.0 455.5 5 100 50 417 14 35 25
spa 500-2 500.0 505.5 5 100 50 467 16 35 25
spa 560-2 560.0 565.5 5 100 50 527 18 35 25
spa 600-2 600.0 605.5 5 110 50 567 18 35 25
spa 630-2 630.0 635.5 5 110 50 597 18 35 25
