80B-2 ASA Duplex Sprocket
  1. 80B-2 ASA Duplex Sprocket

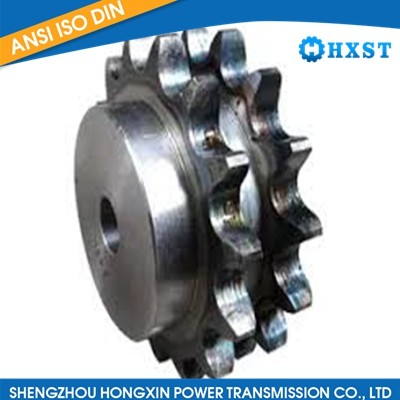

80B-2 ASA Duplex Sprocket

Product Item:HXST-036

Model: 80B-2 ASA Duplex Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

80b-2 asa duplex sprocket , double 80 chain sprockets , double 80 chain , b sprocket
Send InquiryLive chat

Description

Duplex-sprockets ASA80-2

  • ISO-No.: ASA80-2 = 16A-2 (1“ x 5/8″)
  • pitch: 25,4 mm
  • inner width: 15,88 mm
  • Roller-dia.: 15,88 mm
  • tooth width bf2 44,0 mm
  • ba 3,2 mm (radius width)
  • rx 27 mm (min. tooth radius)
No. of teeth pitch circle tip circle hub pilot bore bore total weight
Ø Ø Ø Ø max. length approx
Material steel/C45 do dk dn d1 d2 L kg
12 98,1 109,0 72 20 45 70 2,60
13 106,1 117,0 80 20 47 70 3,18
14 114,1 125,0 88 20 52 70 3,82
15 122,2 133,0 96 20 58 70 4,51
16 130,2 141,0 104 20 60 70 5,17
17 138,2 149,0 112 20 64 70 5,98
18 146,3 157,0 120 20 64 70 6,84
19 154,3 165,0 128 20 64 70 7,76
20 162,4 173,0 130 20 70 70 8,52
21 170,4 181,0 130 25 70 70 9,24
