Product Item:HXST-052

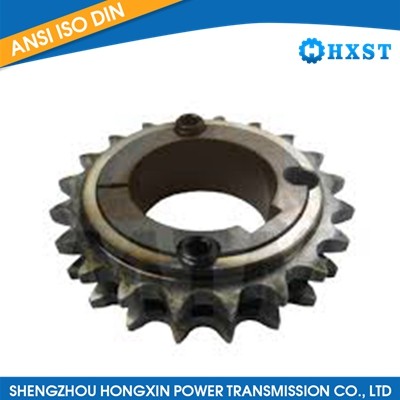

Model: 12B-2 Duplex Taper lock Sprocket
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
|
No. of teeth |
pitch circle |
tip circle |
hub-dia. |
for |
total |
weight |
|
|
Ø |
Ø |
Ø |
bush |
length |
approx |
||
|
d0 |
dk |
dn |
L |
kg |
|||
|
15 |
91,63 |
99,8 |
– |
1610 |
30,3 |
0,66 |
|
|
16 |
97,65 |
105,5 |
– |
1610 |
30,3 |
0,79 |
|
|
17 |
103,67 |
111,5 |
– |
1610 |
30,3 |
0,90 |
|
|
18 |
109,71 |
118,0 |
90 |
2012 |
32,0 |
1,00 |
|
|
19 |
115,75 |
124,2 |
90 |
2012 |
32,0 |
1,28 |
|
|
20 |
121,78 |
129,7 |
90 |
2517 |
45,0 |
1,50 |
|
|
21 |
127,82 |
136,0 |
108 |
2517 |
45,0 |
1,70 |
|
|
22 |
133,86 |
141,8 |
108 |
2517 |
45,0 |
3,00 |
|
|
23 |
139,90 |
149,0 |
108 |
2517 |
45,0 |
3,10 |
|
|
24 |
145,94 |
153,9 |
108 |
2517 |
45,0 |
3,40 |
|
|
25 |
152,00 |
160,0 |
108 |
2517 |
45,0 |
3,75 |
|
|
26 |
158,04 |
165,9 |
108 |
2517 |
45,0 |
4,00 |
|
|
27 |
164,00 |
172,3 |
108 |
2517 |
45,0 |
4,35 |
|
|
28 |
170,13 |
178,0 |
108 |
2517 |
45,0 |
4,60 |
|
|
30 |
182,25 |
190,5 |
108 |
2517 |
45,0 |
5,43 |
|
|
38 |
230,69 |
239,0 |
140 |
3020 |
51,0 |
8,01 |
|
|
45 |
273,10 |
282,5 |
140 |
3020 |
51,0 |
7,70 |
|
|
57 |
345,81 |
355,4 |
140 |
3020 |
51,0 |
10,00 |
|
|
76 |
460,99 |
469,9 |
140 |
3020 |
51,0 |
14,40 |
|
|
95 |
576,17 |
585,1 |
140 |
3020 |
51,0 |
18,60 |
|
