Product Item:HXST-029

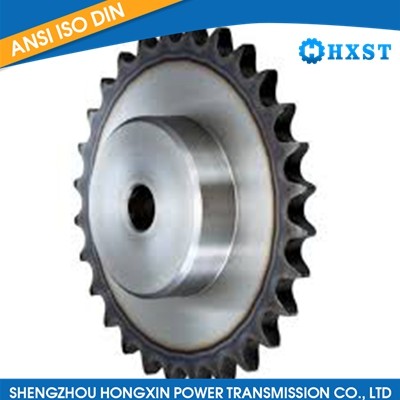

Model: 60B-1 ASA Sprocket
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
|
No. of teeth |
pitch circle |
tip circle |
hub |
pilot bore |
total |
weight |
|
Ø |
Ø |
Ø |
Ø |
length |
approx |
|
|
z |
d0 |
dk |
dn |
d1 |
L |
kg |
|
Material steel/C45 |
||||||
|
10 |
61,6 |
71,5 | 42 | 12 | 30 | 0,40 |
|
11 |
67,6 |
77,5 | 45 | 12 | 30 | 0,52 |
|
12 |
73,6 |
83,5 | 45 | 12 | 30 | 0,67 |
|
13 |
79,6 |
89,5 | 60 | 14 | 35 | 0,83 |
|
14 |
85,6 |
95,5 | 60 | 14 | 35 | 1,00 |
|
15 |
91,6 |
101,5 | 60 | 14 | 35 | 1,17 |
|
16 |
97,6 |
107,5 | 75 | 16 | 35 | 1,34 |
|
17 |
103,7 |
113,6 | 75 | 16 | 35 | 1,54 |
|
18 |
109,7 |
119,6 | 75 | 16 | 35 | 1,65 |
|
19 |
115,7 |
125,6 | 80 | 16 | 35 | 1,71 |
|
20 |
121,8 |
131,7 | 80 | 16 | 35 | 1,82 |
|
21 |
127,8 |
137,7 | 80 | 16 | 35 | 2,37 |
|
22 |
133,9 |
143,8 | 90 | 20 | 40 | 2,45 |
|
23 |
139,9 |
149,8 | 90 | 20 | 40 | 2,56 |
|
24 |
145,9 |
155,8 | 90 | 20 | 40 | 2,73 |
|
25 |
152,0 |
161,9 | 90 | 20 | 40 | 2,80 |
|
26 |
158,0 |
167,9 | 90 | 20 | 40 | 3,09 |
|
27 |
164,1 |
173,9 | 90 | 20 | 40 | 3,30 |
|
28 |
170,1 |
180,0 | 95 | 20 | 40 | 3,40 |
|
30 |
182,3 |
192,1 | 95 | 20 | 40 |
3,65 |
