10DP 14½°Pressure Angle Steel Spur Gear

Product Item:HXST-1005

Model: 10DP 14½°Pressure Angle Steel Spur Gear

Design: These spur gears have a straight-tooth design with teeth that are cut parallel to the gear's axis. The 14½° pressure angle refers to the angle between the tooth face and a line perpendicular t

Material: These spur gears are typically made from high-quality steel material, known for its strength, durability, and resistance to wear and tear. Steel is a common choice due to its ability to hand

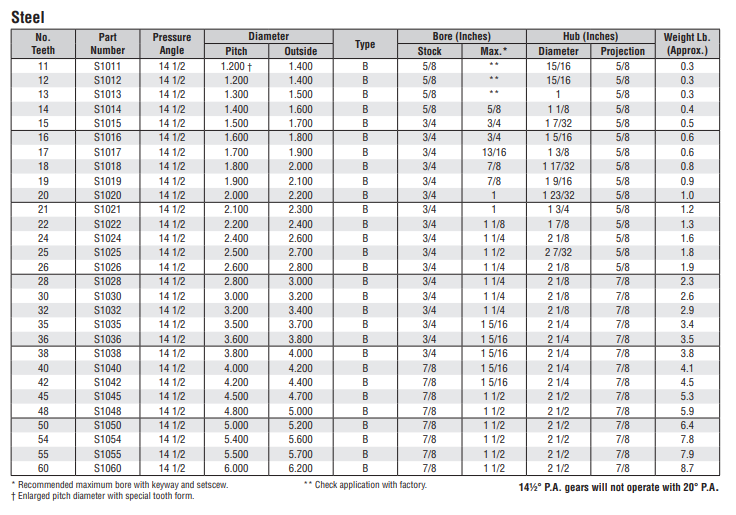

Size Range: 10DP 14½° Pressure Angle Steel Spur Gears are available in a range of sizes, allowing for flexibility in gear selection based on the specific application requirements. The sizes typically

Description

10DP 14½° Pressure Angle Steel Spur Gear is a specific type of gear commonly used in mechanical systems. Let's break down what each term means:

"10DP" refers to the diametral pitch, which represents the number of teeth per inch of the gear's pitch diameter. In this case, the gear has a diametral pitch of 10, meaning there are 10 teeth for every inch of its pitch diameter.

"14½° Pressure Angle" describes the angle at which the gear teeth are oriented. The pressure angle affects factors like load distribution and tooth strength. In this case, the gears have a pressure angle of 14½ degrees.

"Steel" indicates that the gears are made from steel material. Steel is chosen for its strength, durability, and resistance to wear and corrosion, making it suitable for various gear applications.

"Spur Gears" are cylindrical gears with teeth that run parallel to the gear's axis. They are designed to transmit motion and power between parallel shafts.

In summary, a 10DP 14½° Pressure Angle Steel Spur Gear is designed for mechanical systems that require precise motion transmission and durability. With a moderate diametral pitch and a specific pressure angle, these gears provide efficient power transfer and reliable performance. The use of steel material ensures strength and longevity, making them suitable for various industrial applications.
