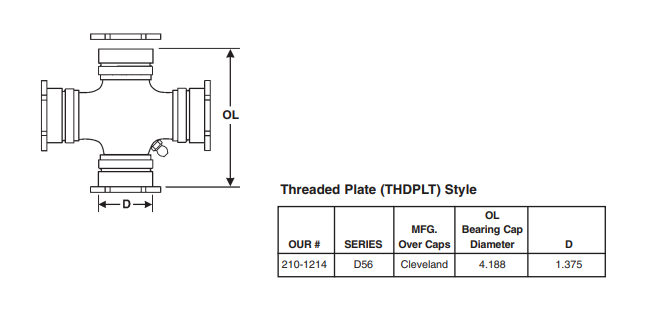

Threaded Plate (THDPLT) Style Universal Joint

Product Item:HXST-1807

Model: Threaded Plate (THDPLT) Style Universal Joint

Threaded Connections: The threaded plates enable a strong and reliable connection between the joint and the shafts, ensuring efficient power transmission.

Installation: THDPLT universal joints should be designed for easy installation and secure attachment to the shafts using appropriate fasteners or locking mechanisms compatible with the threaded connec

Application: Threaded Plate style universal joints find applications in various industries, including automotive, aerospace, industrial machinery, robotics, and more

Description

A Threaded Plate (THDPLT) style universal joint is a specific type of mechanical joint used to transmit rotational motion between two shafts that are not aligned with each other. Here's an explanation of its components:

Threaded Plates: The threaded plates, as the name suggests, have threaded holes or studs that allow for the connection and mounting of the universal joint onto the shafts. These threaded connections provide secure and adjustable attachment points.

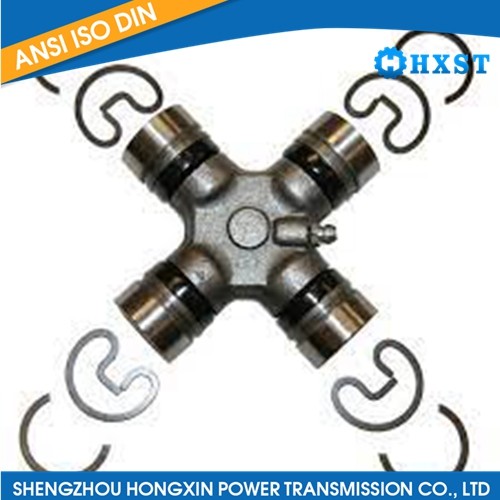

The THDPLT style universal joint operates by connecting two shafts at an angle to each other while allowing for angular misalignment and axial movement. The threaded plates are connected by a center block, typically in a cross or cruciform shape, and bearings are placed at each intersection point to enable smooth rotational movement between the shafts.

This type of universal joint is commonly used in various applications where adjustable and secure connections are required, such as industrial machinery, automotive systems, and robotics. The threaded plates provide flexibility in terms of adjustment and alignment, making them suitable for applications where fine-tuning is necessary.

Proper lubrication and maintenance are essential to ensure the longevity and optimal performance of the THDPLT style universal joint. Additionally, it's important to consider the load capacity, thread size, and operating conditions when selecting a suitable size and material for the universal joint to meet the specific requirements of the application.
