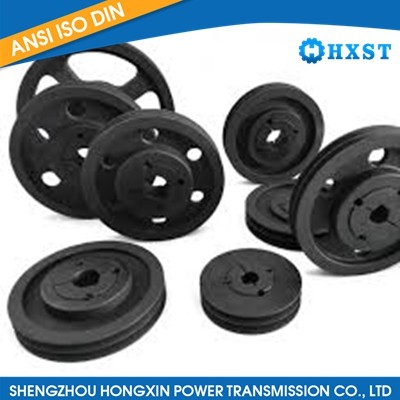

SPB-2 Taper Bore Pulley

Description

SPB-2 taper bore pulley is a specific type of pulley that features a taper bore design for easy and secure mounting onto a shaft. It is commonly used in power transmission systems where accurate speed ratios and motion control are required.

Here are some key features of the SPB-2 taper bore pulley:

Size: The "SPB-2" designation indicates that the pulley is designed to work with SPB (Super Power Belt) section belts, which have a specific width and pitch. The number "2" refers to the number of grooves on the pulley.

Taper Bore: The taper bore design allows the pulley to be mounted securely onto a shaft using a Taper Bushing. The taper bore typically has a tapered inner surface that matches the taper of the bushing, providing a tight and secure fit. This eliminates the need for additional keyways or set screws.

Quick Installation/Removal: The taper bore design enables quick and easy installation or removal of the pulley from a shaft. By tightening or loosening the screws on the taper bushing, the pulley can be securely attached or detached.

Material: Taper bore pulleys are commonly made from materials such as cast iron or steel, which offer durability and strength to handle power transmission requirements.

Applications: The SPB-2 taper bore pulley is commonly used in various power transmission applications, including machinery, industrial equipment, and automotive systems. It is suitable for systems that require precise speed ratios and torque transfer.

Product details

TAPER BORE PULLEYS SPB-2

SPB-2

PART NO. P.D O.D TYPE BUSH NO. MAX BORE E F J K L M N spb 100-2 100.0 107.0 2 1610 42 - 44 62 - 25 19 - spb 112-2 112.0 119.0 2 1610 42 - 44 72 - 25 19 - spb 118-2 118.0 125.0 2 1610 42 - 44 78 - 25 19 - spb 125-2 125.0 132.0 2 2012 50 - 44 82 - 32 12 - spb 132-2 132.0 139.0 2 2012 50 - 44 89 - 32 12 - spb 140-2 140.0 147.0 2 2012 50 - 44 97 - 32 12 - spb 150-2 150.0 157.0 2 2012 50 - 44 107 - 32 12 - spb 160-2 160.0 167.0 2 2012 50 - 44 117 - 32 12 - spb 170-2 170.0 177.0 2 2012 50 - 44 127 - 32 12 - spb 180-2 180.0 187.0 1 2517 60 - 44 - - 45 1 120 spb 190-2 190.0 197.0 1 2517 60 - 44 - - 45 1 120 spb 200-2 200.0 207.0 1 2517 60 - 44 - - 45 1 120 spb 212-2 212.0 219.0 7 2517 60 10 44 169 - 45 1 120 spb 224-2 224.0 231.0 7 2517 60 10 44 181 1 45 - 120 spb 236-2 236.0 243.0 7 2517 60 10 44 193 1 45 - 120 spb 250-2 250.0 257.0 7 2517 60 10 44 207 1 45 - 120 spb 280-2 280.0 287.0 7 2517 60 12 44 237 1 45 - 120 spb 300-2 300.0 307.0 7 2517 60 12 44 257 1 45 - 120 spb 315-2 315.0 322.0 7 2517 60 12 44 272 1 45 - 120 spb 335-2 335.0 342.0 7 2517 60 12 44 292 1 45 - 120 spb 355-2 355.0 362.0 4 3020 75 44 312 3.5 51 3.5 150 spb 400-2 400.0 407.0 4 3020 75 44 357 3.5 51 3.5 150 spb 450-2 450.0 457.0 4 3020 75 44 407 3.5 51 3.5 150 spb 500-2 500.0 507.0 4 3020 75 44 457 3.5 51 3.5 150 spb 560-2 560.0 567.0 4 3030 75 44 517 4 76 28 150 spb 630-2 630.0 637.0 4 3030 75 44 587 4 76 28 150
