60B-3 ASA Triplex Sprocket
  1. 60B-3 ASA Triplex Sprocket

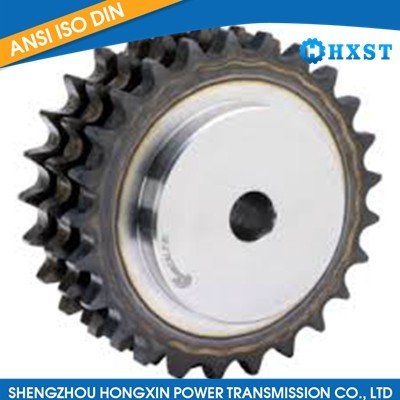

60B-3 ASA Triplex Sprocket

Product Item:HXST-041

Model: 60B-3 ASA Duplex Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

60B-3 ASA Triplex Sprocket , 60b sprocket , 60 sprocket dimensions , 60 sprocket pitch diameter
Send InquiryLive chat

Description

Triplex-sprockets ASA60-3

Dreifach-Kettenräder ASA60-3 (12A-3) nach DIN 8188
  • ISO-No.: ASA60-3 = 12A-3 (3/4“ x 1/2“)
  • pitch: 19,05 mm
  • inner width: 12,70 mm
  • Roller-dia.: 11,91 mm
  • tooth width bf3: 57,4 mm
  • ba 2,4 mm (radius width)
  • rx 20,0 mm (min. tooth radius)
No. of teeth pitch circle tip circle hub pilot bore bore total weight
Ø Ø Ø Ø max. length approx
Material steel/C45 d0 dk dn d1 d2 L kg
12 73,6 82 53 20 32 70 1,39
13 79,6 88 59 20 36 70 1,72
14 85,6 94 65 20 41 70 2,08
15 91,6 100 71 20 44 70 2,47
16 97,6 106 77 20 47 70 2,89
17 103,7 112 83 20 52 70 3,34
18 109,7 118 89 20 55 70 3,83
19 115,7 125 95 20 58 70 4,35
20 121,8 130 100 20 64 70 4,87
21 127,8 136 100 20 64 70 5,20
22 133,9 142 100 20 64 70 5,65
23 139,9 149 110 20 66 70 6,38
24 145,9 154 110 20 66 70 6,87
25 152,0 160 120 20 75 70 7,77
