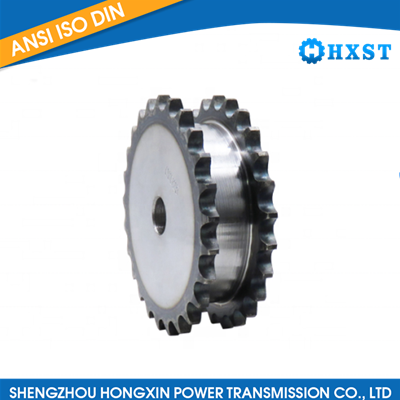

NK 80DSA-2 Double Platewheels For 2 Single Chain

Description

NK 80DSA-2 double platewheels are specifically designed to accommodate two single chains in power transmission systems. Here are some key features of the NK 80DSA-2 double platewheels:

Double Platewheel Design: The NK 80DSA-2 is a double platewheel, which means it consists of two plates or discs that engage with two separate single chains.

NK 80DSA-2 Designation: The "NK 80DSA-2" designation indicates the specific model or part number for the double platewheels. It may include information about the bore size, tooth count, and other relevant specifications.

Application: These double platewheels are commonly used in power transmission systems where two single chains need to be synchronized and driven simultaneously by a common mechanism.

Teeth Configuration: The NK 80DSA-2 double platewheels have teeth designed to match the pitch and width of the corresponding single chains. This tooth configuration ensures proper engagement and smooth operation with the chains.

Durability and Load Capacity: The double platewheel design distributes the load across two single chains, increasing overall strength and load-carrying capacity within the system.

Product details

Tooth Width (T) 0.575

(Dimension : inch)

No. Teeth	Diameters		Bore Dia. d		Dimensions			Weight Lbs. (App)
	Outside Diameter Do	Pitch Diameter Dp	Min.	Max.	BL	C	BD
13	4.660	4.179	1	2	2 3/16	1 5/8	3 1/64	6.5
14	4.980	4.494	1	2 1/4	2 3/16	1 5/8	3 11/32	7.7
15	5.300	4.810	1	2 3/8	2 3/16	1 5/8	3 13/16	9.1
16	5.630	5.126	1	2 11/16	2 3/16	1 5/8	4	9.5
17	5.950	5.442	1	2 13/16	2 3/16	1 5/8	4 5/16	10.8
18	6.270	5.759	1	3 1/8	2 3/16	1 5/8	4 41/64	12.1
19	6.590	6.076	1	3 1/4	2 3/16	1 5/8	4 61/64	12.8
20	6.910	6.392	1	3 1/2	2 3/16	1 5/8	5 9/32	14.0
21	7.240	6.710	1	3 3/4	2 3/16	1 5/8	5 19/32	16.5
22	7.560	7.027	1	3 7/8	2 3/16	1 5/8	5 59/64	18.4
