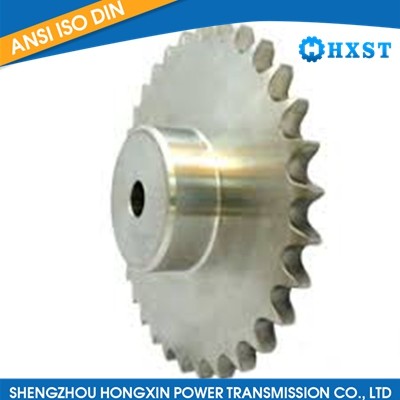

NK SUS 40B-1 Stainless Steel Sprocket

Description

NK SUS 40B-1 stainless steel sprocket is a specific type of sprocket that is made from stainless steel material. Here are some key features of the NK SUS 40B-1 stainless steel sprocket:

Stainless Steel Material: The "SUS" designation indicates that the sprocket is made from stainless steel. Stainless steel offers excellent corrosion resistance, making it suitable for applications where exposure to moisture, chemicals, or harsh environments is a concern.

NK SUS 40B-1 Designation: The "NK SUS 40B-1" designation specifies the specific model or part number for the sprocket. It may include information about the tooth count, bore size, and other relevant specifications.

Application: Stainless steel sprockets like the NK SUS 40B-1 are commonly used in industries such as food processing, pharmaceuticals, chemical processing, and marine applications where cleanliness, durability, and resistance to corrosion are crucial.

Teeth Configuration: The NK SUS 40B-1 stainless steel sprocket will have teeth designed to match the pitch and width of the corresponding roller chain. The tooth profile and configuration ensure proper engagement and smooth operation with the chain.

Durability and Cleanliness: Stainless steel sprockets provide enhanced durability and cleanliness compared to sprockets made from other materials. They are resistant to rust, staining, and contamination, making them suitable for demanding applications.

Product details

Tooth Width (T)

0.284

No. Teeth	Outside Diameter Do	Bore (Inches)		Hub (Inches)		Weight Lbs. (App)
		Stock d	Rec. Max.	Dia. BD	Length Thru BL
10	1.840	1/2	3/4	1 1/4*	7/8	.28
11	2.000	1/2	13/16	1 3/8*	7/8	.36
12	2.170	1/2	15/16	1 9/16*	7/8	.44
13	2.330	1/2	1 1/16	1 9/16	7/8	.50
14	2.490	1/2	1 1/8	1 11/16	7/8	.60
15	2.650	5/8	1 1/4	1 13/16	7/8	.68
16	2.810	5/8	1 3/8	2	7/8	.82
17	2.980	5/8	1 7/16	2 1/8	1	1.06
18	3.140	5/8	11/2	2 5/16	1	1.24
19	3.300	5/8	1 3/4	2 1/2	1	1.42
20	3.460	5/8	1 7/8	2 5/8	1	1.60
21	3.620	5/8	1 7/8	2 3/4	1	1.68
22	3.780	5/8	1 7/8	2 7/8	1	1.81
23	3.940	5/8	2	3	1	2.18
24	4.100	5/8	2 1/4	3 1/4	1	2.20
25	4.260	5/8	2 1/4	3 1/4	1	1.84
26	4.420	5/8	2 1/4	3 1/4	1	2.40
28	4.740	5/8	2 1/4	3 1/4	1	2.75
30	5.060	5/8	2 1/4	3 1/4	1	2.88
35	5.860	5/8	2 1/4	3 1/4	1	3.32
40	6.650	3/4	2 3/8	3 1/2	1	4.28
45	7.450	3/4	2 3/8	3 1/2	1	4.68
60	9.840	3/4	2 3/8	3 1/2	1	7.00
