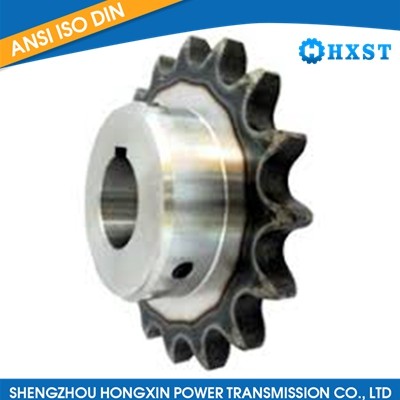

NK 60B Finished Bore Sprocket

Description

NK 60B Finished Bore Sprocket is a specific type of sprocket that comes with a finished bore size. Here are some key features of the NK 60B finished bore sprocket:

Finished Bore Design: The "finished bore" designation indicates that the sprocket has a pre-machined and finished bore size. This allows for easy installation onto a shaft without the need for additional machining or modifications.

NK 60B Designation: The "NK 60B" designation specifies the specific model or part number for the finished bore sprocket. It may include information about the tooth count, pitch, and other relevant specifications.

Material: Finished bore sprockets like the NK 60B can be made from various materials, such as carbon steel or stainless steel. The choice of material depends on factors such as load requirements, environmental conditions, and cost considerations.

Teeth Configuration: The NK 60B finished bore sprocket will have teeth designed to match the pitch and width of the corresponding roller chain. The tooth profile and configuration ensure proper engagement and smooth operation with the chain.

Applications: Finished bore sprockets are commonly used in power transmission systems where a sprocket needs to be easily mounted onto a shaft. The NK 60B finished bore sprocket can be utilized in various applications such as machinery, conveyors, or industrial equipment.

Product details

Outside Dia Do	Pitch Dia Dp	Length Thru Bore	Sprocket No.		Finished Bores Includes Keyway and Setscrew	Weight Lbs. (App.)
		BL	Type	Teeth
2.511	2.193	1-1/4	FB60B	9	5/8, 3/4, 7/8, 1	0.6
2.759	2.427	1-1/4		10	5/8, 3/4, 7/8, 1	0.7
3.005	2.663	1-1/4		11	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	0.9
3.249	2.898	1-1/4		12	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	1.3
3.493	3.134	1-1/4		13	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2	1.3
3.736	3.371	1-1/4		14	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2	1.6
3.978	3.608	1-1/4		15	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-5/8, 1-3/4	1.7
4.220	3.845	1-1/4		16	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	2.1
4.462	4.082	1-1/4		17	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	2.4
4.703	4.319	1-1/4		18	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	2.6
4.945	4.557	1-1/4		19	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	3.4
5.186	4.794	1-1/4		20	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	3.9
5.426	5.033	1-1/4		21	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	4.4
5.666	5.270	1-1/4		22	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	4.7
5.907	5.508	1-1/4		23	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	5.0
6.147	5.746	1-1/4		24	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	5.3
6.387	5.984	1-1/4		25	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	5.4
6.627	6.222	1-1/4		26	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	5.8
6.867	6.461	1-1/4		27	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	6.3
7.106	6.698	1-1/4		28	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	6.4
7.346	6.937	1-1/4		29	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	6.9
7.586	7.175	1-1/4		30	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	7.1
7.826	7.413	1-1/4		31	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	7.4
8.065	7.652	1-1/4		32	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	7.8
8.305	7.890	1-1/4		33	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	8.2
8.544	8.129	1-1/4		34	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	8.5
8.783	8.367	1-1/4		35	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	8.8
9.023	8.606	1-1/4		36 Related Products 20DP Steel Stock Spur Gears 20°Pressure Angle Precision stainless steel hydraulic joint 120B-2 Sprockets With Split Taper Bushing UCFL 200 Pillow Block Bearing ANSI 35A-2 37T Plate wheels double Sprocket ANSI 40A-1 15T Plate wheel chain sprocket
