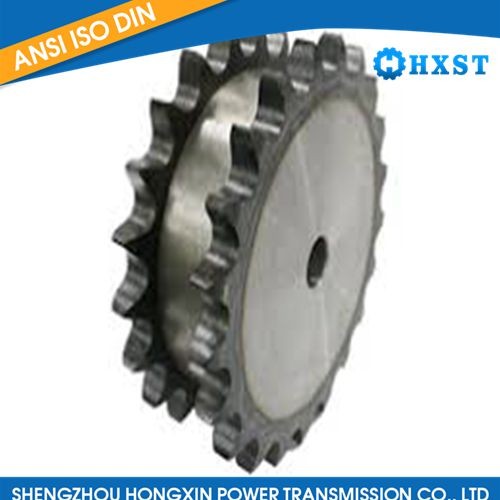

ANSI 40A-2 26T Double Plate wheel chain sprocket
  1. ANSI 40A-2 26T Double Plate wheel chain sprocket

ANSI 40A-2 26T Double Plate wheel chain sprocket

Product Item:HXPT-063

Model: ANSI 40A-B-1-2-3 Sprockets and Platewheel

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

ANSI 40A-2 26T Double Plate wheel chain sprocket , double 40 chain sprocket , double 40 roller chain
Send InquiryLive chat

Description

ANSI 40-2 Plate Steel Sprocket

For #40 Double Strand Chain with

1/2 Inch Pitch

5/16 Inch Roller Width

0.313 Inch Roller Diameter

0.283 Inch Single Tooth Width (B1)

0.843 Inch Sprocket Tooth Face Width (B2)

4.39 Inch Outside Diameter (Approximate) (de)

Without Hub (Plate Type)

5/8 Inch Inch approximate Pilot hole / bore +/- 1/16 inch (d1)

0.843 Inch Inch Total Width (A)
