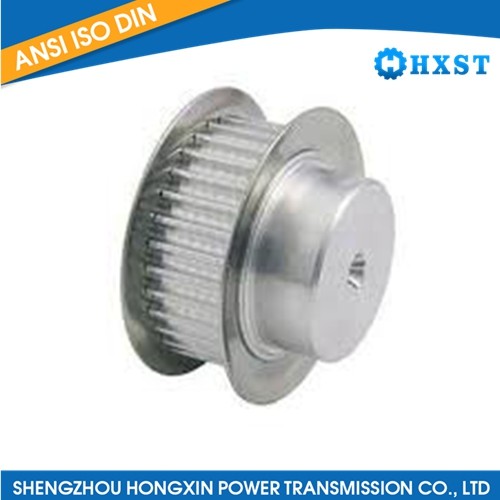

HTP 3M-15 Timing Pulley

Product Item:HXST-255

Model:HTP 3M-15 Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Description

HTP 3M-15 Timing Pulley is a specific type of timing pulley used in power transmission systems. Here's some information about this particular pulley:

Size: The designation "3M-15" indicates the pitch size and belt length. In this case, it refers to a 3mm pitch size and a belt length of 15 teeth.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Timing Belt Compatibility: The 3M-15 designation corresponds to a specific tooth profile and pitch size, which must match with the corresponding timing belt for proper operation and synchronization in the power transmission system.
Application: Timing pulleys are commonly used in various industrial applications where precise motion control and synchronization are required, such as conveyors, robotics, printing machinery, and CNC machines.
