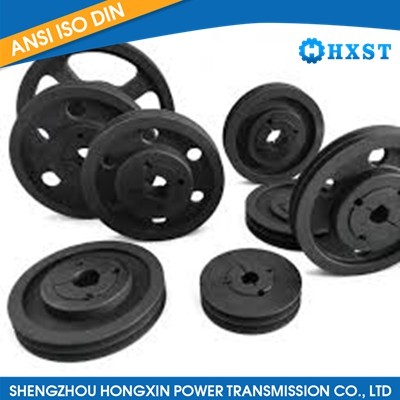

SPB-3 Taper Bore Pulley
  1. SPB-3 Taper Bore Pulley

SPB-3 Taper Bore Pulley

Product Item:HXST-205

Model:SPB-3 Taper Bore Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

SPB-3 Taper Bore Pulley , taper bore pulley , taper shaft pulley , spb pulley dimensions , spb taper lock pulley
Send InquiryLive chat

Description

SPB-3 taper bore pulley is a specific type of pulley that features a taper bore design for easy and secure mounting onto a shaft. It is commonly used in power transmission systems where accurate speed ratios and motion control are required.

Here are some key features of the SPB-3 taper bore pulley:

Size: The "SPB-3" designation indicates that the pulley is designed to work with SPB (Super Power Belt) section belts, which have a specific width and pitch. The number "3" refers to the number of grooves on the pulley.

Taper Bore: The taper bore design allows the pulley to be mounted securely onto a shaft using a Taper Bushing. The taper bore typically has a tapered inner surface that matches the taper of the bushing, providing a tight and secure fit. This eliminates the need for additional keyways or set screws.

Quick Installation/Removal: The taper bore design enables quick and easy installation or removal of the pulley from a shaft. By tightening or loosening the screws on the taper bushing, the pulley can be securely attached or detached.

Material: Taper bore pulleys are commonly made from materials such as cast iron or steel, which offer durability and strength to handle power transmission requirements.

Applications: The SPB-3 taper bore pulley is commonly used in various power transmission applications, including machinery, industrial equipment, and automotive systems. It is suitable for systems that require precise speed ratios and torque transfer.
