T20-53 Timing Pulley

Description

T20-53 Timing Pulley is a specific type of timing pulley used in power transmission systems. Here's some information about this particular pulley:

Size: The designation "T20-53" indicates the tooth profile and belt length. In this case, it refers to a T (Tooth) tooth profile and a belt length of 53 teeth.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Belt Profile Compatibility: The T20 designation corresponds to a specific tooth profile, which must match with the corresponding timing belt that also has a T20 profile for proper operation and synchronization in the power transmission system.
Application: Timing pulleys are commonly used in various industrial applications where precise motion control and synchronization are required, such as conveyors, robotics, printing machinery, and CNC machines.

Product details

TIMING PULLEYS T20-53

T20-53

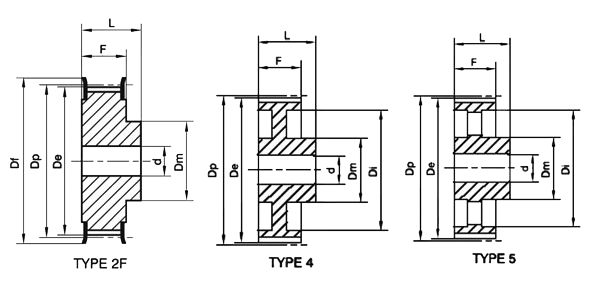

SPC TYPE Z De Df Dm F L d 53-T20-18 2F 18 111.75 120 80 38 53 16 53-T20-20 2F 20 124.5 142 90 38 53 16 53-T20-22 2F 22 137.2 150 90 38 53 16 53-T20-24 2F 24 149.95 158 95 38 53 16 53-T20-25 2F 25 156.3 168 95 38 53 16 53-T20-30 2F 30 188.15 200 110 38 53 16 53-T20-32 4 32 200.85 216 110 38 53 18 53-T20-36 4 36 226.35 - 110 38 53 18 53-T20-40 5 40 251.8 - 110 38 53 20 53-T20-48 5 48 302.7 - 130 38 53 20 53-T20-60 5 60 379.1 - 130 38 53 20 53-T20-72 5 72 455.5 - 140 38 53 20
