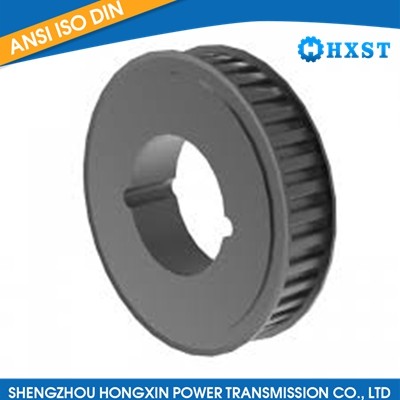

HTP 14M-170 Taper Bore Timing Pulley
  1. HTP 14M-170 Taper Bore Timing Pulley

HTP 14M-170 Taper Bore Timing Pulley

Product Item:HXST-282

Model:HTP 14M-170 Taper Bore Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

HTP 14M-170 Taper Bore Timing Pulley , taper bore pulley , taper lock timing belt pulley , 14h100 timing pulley , taper shaft pulley
Send InquiryLive chat

Description

The HTP 14M-170 Taper Bore Timing Pulley is a specific type of timing pulley used in power transmission systems. Here is some information about this particular pulley:

Size: The designation "14M-170" indicates the pitch size and belt length. In this case, it refers to a 14mm pitch size and a belt length of 170 teeth.
Taper Bore: The taper bore feature means that the pulley has a tapered inner bore, allowing for easy installation and removal by tightening or loosening a locking device.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Timing Belt Compatibility: The 14M-170 designation corresponds to a specific tooth profile and pitch size, which must match with the corresponding timing belt for proper operation and synchronization in the power transmission system.
Application: Timing pulleys are commonly used in various industrial applications such as conveyors, robotics, printing machinery, and CNC machines where precise motion control and synchronization are essential.


14M
PITCH - 14 mm
FOR BELT WIDTH - 170 mm


Code Type Material Teeth Buss Hole max dp de Df Dm Di F L R n◦ flange
TL 38 14M 170 18F St 38 3030 75 169,34 166,60 183 187 76 55,5 406
TL 40 14M 170 18F St 40 3030 75 178,25 175,49 188 187 76 55,5 407
TL 44 14M 170 18F St 44 3535 90 196,08 193,28 211 187 89 49 411
TL 48 14M 170 18F St 48 3535 90 213,90 211,11 226 187 89 49 412
TL 56 14M 170 18F St 56 3535 90 249,55 246,76 256 187 89 49 416
TL 64 14M 170 18F GG 64 4040 100 285,21 282,41 296 187 102 42,5 418
TL 72 14M 170 19 GG 72 4040 100 320,86 318,06 230 187 102 42,5
TL 80 14M 170 19 GG 80 4040 100 356,51 353,71 230 187 102 42,5
TL 90 14M 170 20 GG 90 4040 100 401,07 398,28 230 187 102 42,5
TL 112 14M 170 20 GG 112 5050 125 499.11 496.32 265 187 127 30
TL 144 14M 170 20 GG 144 5050 125 641.71 638.92 265 187 127 30
TL 168 14M 170 20 GG 168 5050 125 748.66 745.87 265 187 127 30
TL 192 14M 170 20 GG 192 5050 125 855.62 852.82 265 187 127 30
