Product Item:HXPT-063
Model: ANSI 40A-B-1-2-3 Sprockets and Platewheel
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.

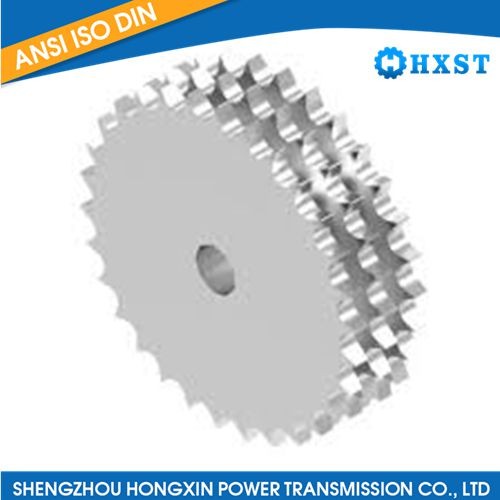

ANSI 40-3 Plate Steel Sprocket
For #40 Triple Strand Chain with
1/2 Inch Pitch
5/16 Inch Roller Width
0.313 Inch Roller Diameter
0.283 Inch Single Tooth Width (B1)
1.409 Inch Sprocket Tooth Face Width (B3)
5.024 Inch Outside Diameter (Approximate) (de)
Without Hub (Plate Type)
7/8 Inch Inch approximate Pilot hole / bore +/- 1/16 inch (d1)
1.409 Inch Inch Total Width (A)
