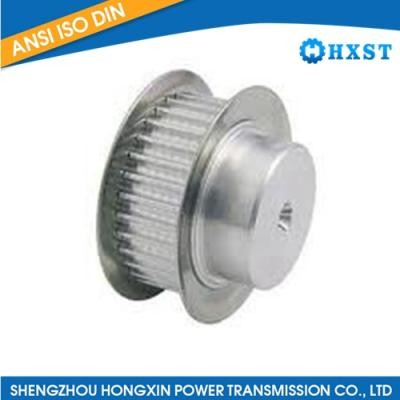

HTP 20M-115 Timing Pulley
  1. HTP 20M-115 Timing Pulley

HTP 20M-115 Timing Pulley

Product Item:HXST-269

Model:HTP 20M-115 Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

HTP 20M-115 Timing Pulley , compress timing chain tensioner , l pitch timing belt
Send InquiryLive chat

Description

HTP 20M-170 Timing Pulley is a specific type of timing pulley used in power transmission systems. Here's some information about this particular pulley:

Size: The designation "20M-170" indicates the pitch size and belt length. In this case, it refers to a 20mm pitch size and a belt length of 170 teeth.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Timing Belt Compatibility: The 20M-170 designation corresponds to a specific tooth profile and pitch size, which must match with the corresponding timing belt for proper operation and synchronization in the power transmission system.
Application: Timing pulleys are commonly used in various industrial applications where precise motion control and synchronization are required, such as conveyors, robotics, printing machinery, and CNC machines.


Product details

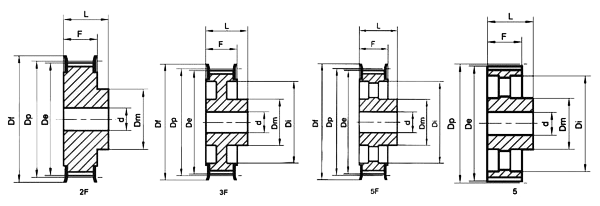

TIMING PULLEYS HTP 20-115


HTP 20M-115

SPC TYPE Z Dp De Df Dm DI F L d
34-20M-115 2F 34 216.45 212.13 240 165.0 - 136.5 168.5 32
36-20M-115 2F 36 229.18 224.87 250 178.0 - 136.5 168.5 32
38-20M-115 2F 38 241.92 237.60 265 181.0 - 136.5 168.5 32
40-20M-115 2F 40 254.56 250.33 275 203.0 - 136.5 168.5 32
44-20M-115 2F 44 280.11 275.79 300 210.0 - 136.5 168.5 32
48-20M-115 2F 48 305.88 301.26 325 228.0 - 136.5 168.5 32
52-20M-115 2F 52 331.04 326.72 350 228.0 - 136.5 168.5 32
56-20M-115 2F 56 356.51 352.19 375 228.0 - 136.5 168.5 32
60-20M-115 3F 60 381.97 377.65 405 228.0 318 136.5 168.5 38
64-20M-115 3F 64 407.44 403.12 430 228.0 343 136.5 168.5 38
68-20M-115 3F 68 432.9 428.58 455 228.0 366 136.5 168.5 38
72-20M-115 5F 72 458.37 454.05 480 228.0 435 136.5 168.5 38
80-20M-115 5F 80 509.3 504.98 530 280.0 445 136.5 168.5 38
90-20M-115 5F 90 572.96 568.64 595 280.0 508 136.5 168.5 38
112-20M-115 5 112 713.01 708.70 - 280.0 648 136.5 168.5 38
144-20M-115 5 144 916.73 912.41 - 300.0 852 136.5 168.5 44
168-20M-115 5 168 1069.52 1065.21 - 300.0 1005 136.5 168.5 44
192-20M-115 5 192 1222.31 1218.00 - 300.0 1158 136.5 168.5 48
216-20M-115 5 216 1375.1 1370.78 - 300.0 1300 136.5 168.5 48
