Product Item:HXST-402

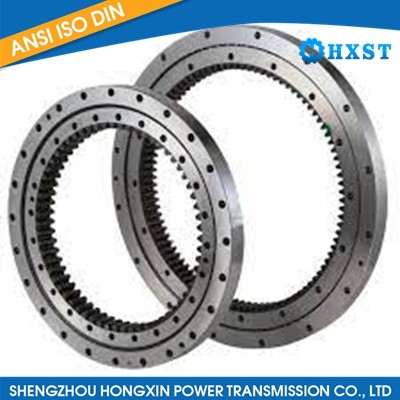

Model:HJ series Internal gear slewing bearing
Installation: Proper mounting and alignment are essential for optimal performance and longevity
Gear Type: Equipped with an internal gear on the inner ring for power transmission and rotation contro
Series: Part of the HJ series, denoting its specific design and dimensions within the internal gear slewing bearing category
Structural characteristics, performance, scope of application
Single-row crossed roller slewing bearing, consisting of two races, has a compact structure, light weight, high manufacturing accuracy, small assembly gap, and high requirements for installation accuracy. Force, tipping moment and large radial force are widely used in lifting and transportation, engineering machinery and military products.
Note:
1. n1 is the number of lubricating oil holes, evenly distributed: oil cup M10 × 1 JB / T7940.1-TB7940.2.
2. The mounting hole n-Φ can be changed to a screw hole; the tooth width b can be changed to H-h.
3. The circumferential force of the Gear in the table is the maximum circumferential force, and the rated circumferential force is 1/2.
4. The coefficients of displacement in the table are all external gear design.
