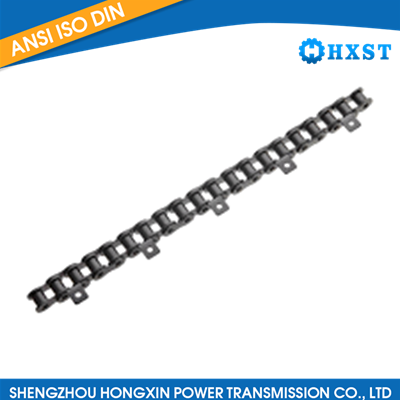

#50 Roller Chain With A1 Attachment

Description

50 Roller Chain with A1 attachment refers to a specific type of roller chain that has an A1 attachment added to it. Here are some key details about the 50 roller chain with A1 attachment:

Chain Size: The "50" designation corresponds to the chain size or pitch of the roller chain. In this case, it indicates a chain with a pitch of 5/8 inch.

Roller Chain: The 50 roller chain is a commonly used industrial chain that consists of interconnected links with rollers between them. These rollers allow for smooth and efficient movement of the chain when engaged with sprockets.

A1 Attachment: The A1 attachment is a specific type of attachment designed to be added to the outer plates of the roller chain. This attachment provides a means to connect additional components or accessories to the chain, such as brackets, hooks, or other devices.

Application: The 50 roller chain with A1 attachment is often used in various industrial applications where there is a need for attaching or hanging objects along the chain's length. It can be found in conveyor systems, material handling equipment, or any application requiring the secure attachment of additional components.

Construction and Material: The 50 roller chain with A1 attachment is typically constructed from high-strength steel or stainless steel to withstand heavy loads and resist wear and corrosion. The material choice depends on the specific application requirements.

Maintenance: Regular lubrication and periodic inspection for wear or damage are important to ensure proper functioning and longevity of the chain. Following the manufacturer's recommended maintenance guidelines is essential to prevent premature failure and maintain optimal performance.

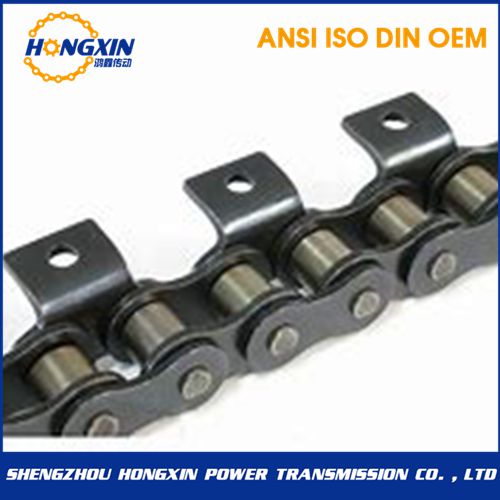

#50 single strand roller chain with A-1 attachments every outer 2nd pitch.

Chain Dimensions:

Pitch (P): 5/8"

Roller Width (b1): 3/8"

Roller Diameter (d1): 0.400"

Overall Width: (L): 0.815"

Pin Diameter (d2): 0.200"

Link Plate Height (h2): 0.585"

Link Plate Thickness (T): 0.080"

Average Tensile Strength (LBS): 6,600

Number of Links per 10 ft - 192
