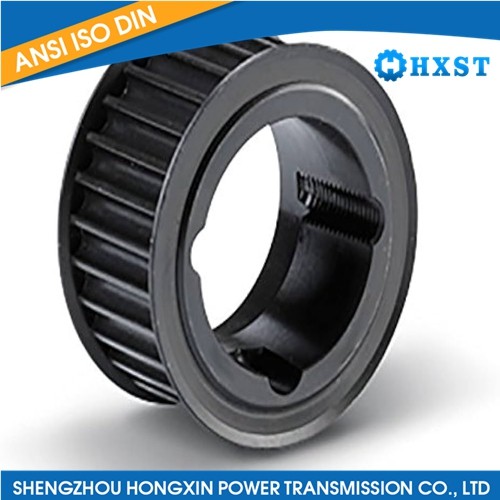

H075 Taper Bushing Timing Pulley
  1. H075 Taper Bushing Timing Pulley

H075 Taper Bushing Timing Pulley

Product Item:HXST-224

Model:H075 Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

H075 Taper Bushing Timing Pulley , taper bushing pulley , taper lock bushing pulley , taper shaft pulley
Send InquiryLive chat

Description

H075 Taper Bushing Timing Pulley is a specific type of timing pulley that utilizes a taper bushing for mounting onto a shaft. It combines the features of a standard timing pulley with the convenience and versatility of a taper bushing for easy installation and removal.

Here are some key features of the H075 taper bushing timing pulley:

Size: The "H075" designation indicates that the timing pulley has a pitch diameter of 0.75 inches, just like a standard H075 timing pulley.

Taper Bushing: The taper bushing is a mechanical component that allows the timing pulley to be mounted securely onto a shaft. It consists of a tapered sleeve with a split design that can be tightened or loosened by tightening or loosening the screws on the bushing. This provides a tight and secure fit onto the shaft, eliminating the need for additional keyways or set screws.

Quick Installation/Removal: The taper bushing design makes it quick and easy to install or remove the timing pulley from a shaft without requiring specialized tools. By tightening or loosening the screws on the bushing, the pulley can be securely attached or detached from the shaft.

Compatibility: The H075 taper bushing timing pulley is designed to work with a specific pitch of timing belt, typically the 3/8" (0.375") pitch. It is important to ensure that the timing belt used is compatible with the pulley's tooth profile and pitch.

Applications: The H075 taper bushing timing pulley is commonly used in applications where precise timing and motion control are required. Its ease of installation and removal make it suitable for machinery and equipment that may require frequent pulley changes or adjustments.
