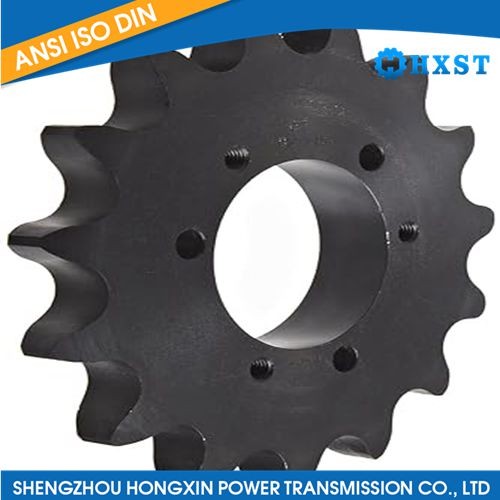

100B Single Type QD Bushing Sprocket

Product Item:HXST-823

Model: 100B Single Type QD Bushing Sprocket

Material: These sprockets are typically made from durable materials such as steel, which provide strength and resistance to wear and corrosion. The material choice may depend on the specific applicati

QD Bushing System: The sprocket is designed to work with a compatible QD bushing. The QD bushing provides a secure fit on the shaft and allows for easy assembly and disassembly of the sprocket without

Application Versatility: The 100B Single Type QD Bushing Sprocket finds application in various industries, including manufacturing, agriculture, mining, and more. It is commonly used in power transmis

Description

100B Single Type QD Bushing Sprocket is a specific type of sprocket designed to work with a Single Type QD (Quick Detachable) bushing. It is commonly used in belt drive systems for efficient power transmission.

Key features of the 100B Single Type QD Bushing Sprocket include:

Sprocket Design: The sprocket has teeth around its circumference that engage with the teeth of a corresponding belt, enabling the transfer of rotational motion and torque.

Single Type QD Bushing: The sprocket is specifically designed to work with a Single Type QD bushing. The QD bushing provides a secure and precise fit onto the shaft, allowing for easy installation and removal of the sprocket.

Material and Construction: The 100B Single Type QD Bushing Sprocket is typically made from durable materials such as steel or cast iron, ensuring strength and durability under varying loads and operating conditions.

Wide Range of Sizes: The 100B sprocket is available in various sizes and configurations to accommodate different belt widths and power requirements. This allows for flexibility in selecting the appropriate sprocket for specific applications.

Belt Drive System Applications: The 100B Single Type QD Bushing Sprocket is commonly used in industrial applications where reliable power transmission is required. It can be found in applications such as conveyors, machinery, and other belt-driven systems.

When selecting a 100B Single Type QD Bushing Sprocket, it's important to consider factors such as the number of teeth, pitch diameter, bore size compatibility with the Single Type QD bushing, and the belt type and size requirements. Proper installation of the sprocket and regular maintenance, including inspection for wear and correct tensioning of the belt, are crucial for optimal performance and longevity of the sprocket and belt drive system.
