SPA-5 Standard Pulley
  1. SPA-5 Standard Pulley

SPA-5 Standard Pulley

Product Item:HXST-181

Model:SPA-5 Standard Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

SPA-5 Standard Pulley , spa sheave , spa pulley dimensions , spa pulley sizes , v belt pulley specs
Send InquiryLive chat

Description

SPA-5 standard pulley is a specific type of pulley that is designed to work with SPA (Super Power Angle) section V-belts. It is commonly used in power transmission systems where accurate speed ratios and motion control are required.

Here are some key features of the SPA-5 standard pulley:

Size: The "SPA-5" designation indicates that the pulley is designed to work with SPA section V-belts, which have a specific width and pitch. The number "5" refers to the number of grooves on the pulley.

Standard Design: The SPA-5 pulley follows the standard design for SPA metric V-belt pulleys. It has a specific groove shape and dimensions to match the corresponding SPA V-belt.

Material: Standard pulleys like the SPA-5 can be made from various materials, including cast iron, steel, or aluminum. The choice of material depends on factors such as load requirements, operating conditions, and cost considerations.

Keyway or Set Screw: Depending on the design, the SPA-5 pulley may include a keyway or set screw mechanism to securely attach it to the shaft. This ensures proper alignment and prevents slippage during operation.

Applications: The SPA-5 standard pulley is commonly used in various power transmission applications, including machinery, industrial equipment, and automotive systems. It is suitable for systems that require precise speed ratios and torque transfer using SPA V-belts.

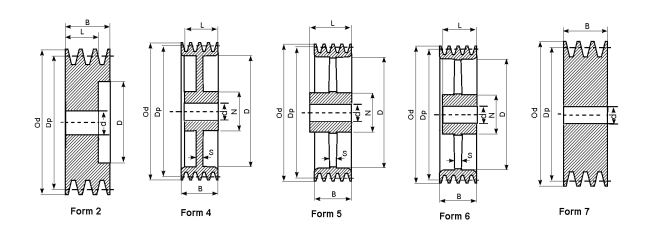

STANDARD BORE PULLEYS SPA-5


SPA-5

PART NO. P.D O.D TYPE N L D E B d
spa 75-5 75.0 80.5 7 - - - - 80 10
spa 80-5 80.0 85.5 7 - - - - 80 15
spa 85-5 85.0 90.5 7 - - - - 80 15
spa 90-5 90.0 95.5 7 - - - - 80 15
spa 95-5 95.0 100.5 7 - - - - 80 15
spa 100-5 100.0 105.5 2 - 52 67 - 80 15
spa 112-5 112.0 117.5 2 - 52 79 - 80 15
spa 118-5 118.0 123.5 2 - 52 87 - 80 15
spa 132-5 132.0 137.5 2 - 52 97 - 80 15
spa 140-5 140.0 145.5 2 - 52 107 - 80 20
spa 150-5 150.0 155.5 2 - 52 117 - 80 20
spa 160-5 160.0 165.5 4 80 52 127 12 80 20
spa 170-5 170.0 175.5 4 80 52 137 12 80 20
spa 180-5 180.0 185.5 4 80 65 147 12 80 20
spa 200-5 200.0 205.5 4 80 65 167 12 80 20
spa 224-5 224.0 229.5 4 90 65 192 12 80 20
spa 250-5 250.0 255.5 4 90 65 217 12 80 20
spa 280-5 280.0 285.5 6 100 65 247 14 80 25
spa 300-5 300.0 305.5 6 100 65 267 14 80 25
spa 315-5 315.0 320.5 6 100 65 282 16 80 25
spa 355-5 355.0 360.5 6 100 65 322 18 80 25
spa 400-5 400.0 405.5 6 100 65 367 22 80 25
spa 450-5 450.0 455.5 6 105 65 417 22 80 25
spa 500-5 500.0 505.5 6 110 65 467 22 80 25
spa 560-5 560.0 565.5 5 120 80 527 24 80 25
spa 600-5 600.0 605.5 5 120 80 567 24 80 25
spa 630-5 630.0 635.5 5 120 80 597 24 80 25
