Product Item:HXPT-089

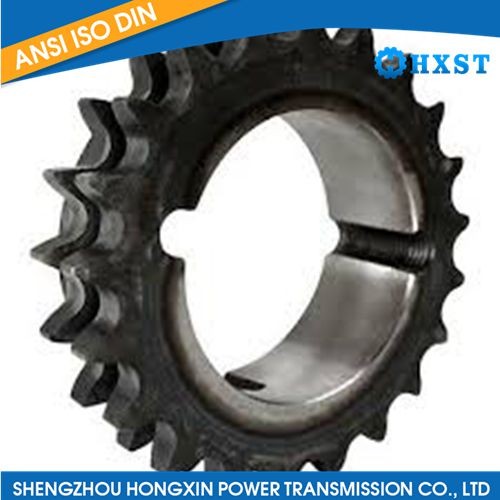

Model: 35B-2 Duplex Taper lock Sprocket
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
D35TL23H.1210 Sprocket
for 1210 Taper Lock Bush No.35-2 ANSI Sprocket
23 Hard Teeth
For #35 Double Strand Chain with
3/8 Inch Pitch
3/16 Inch Roller Width
0.200 Inch Roller Diameter
0.169 Inch Sprocket Tooth Width(B1)
0.561 Inch Width Accross Sprocket Teeth(B2)
2.954 Inch Outside Diameter (Approximate)
2.754 Inch Pitch Diameter
2.44 Inch Hub Diameter(C)
1 Inch Total Length Through Bore(L)
