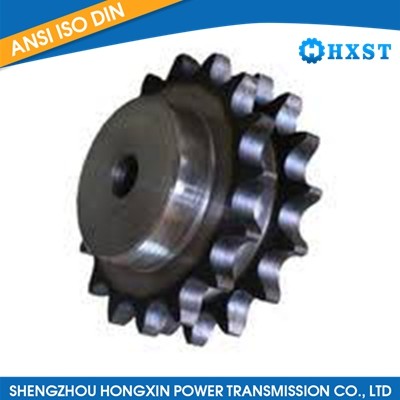

50B-2 NK Double Sprocket

Description

50B-2 NK Double Sprocket is a specific type of sprocket that falls under the NK series. Here are some key features of the 50B-2 NK double sprocket:

Double Sprocket Design: The "double" designation indicates that the sprocket has two sets of teeth, allowing it to engage with two separate roller chains simultaneously.

50B-2 Designation: The "50B-2" designation specifies the specific model or part number for the double sprocket. It may include information about the tooth count, bore size, and other relevant specifications.

NK Series: The NK series refers to a line of sprockets produced by the manufacturer. Each model within the series has its own unique features and specifications.

Teeth Configuration: The 50B-2 NK double sprocket will have teeth designed to match the pitch and width of the corresponding roller chains. The tooth profile and configuration ensure proper engagement and smooth operation with the chains.

Applications: Double sprockets like the 50B-2 NK are commonly used in power transmission systems where two roller chains need to be driven simultaneously, such as conveyor systems, industrial machinery, or automotive applications.

Product details (Dimension : inch)

No. Teeth Outside Diameter Do Bore (Inches) Hub (Inches) Weight Lbs. (App) Stock d Rec. Max. Dia. BD Length Thru BL 11 2.500 5/8 15/16 1 15/32 1 3/4 .96 12 2.710 5/8 1 1/8 1 11/16 1 3/4 1.25 13 2.910 5/8 1 5/16 1 7/8 1 3/4 1.56 14 3.110 5/8 1 3/8 2 1/16 1 3/4 1.86 15 3.320 3/4 1 1/2 2 5/16 1 3/4 2.22 16 3.520 3/4 1 3/4 2 1/2 1 3/4 2.62 17 3.720 3/4 1 7/8 2 11/16 1 3/4 3.04 18 3.920 3/4 1 15/16 2 15/16 1 3/4 3.58 19 4.120 1 2 1/8 3 1/8 1 3/4 3.90 20 4.320 1 2 1/4 3 1/4 1 3/4 4.26 21 4.520 1 2 3/8 3 1/2 1 3/4 4.90 22 4.720 1 2 3/8 3 9/16 1 7/8 5.58 23 4.920 1 2 1/2 3 5/8 1 7/8 6.10 24 5.120 1 2 1/2 3 5/8 1 7/8 6.50 25 5.320 1 2 1/2 3 5/8 1 7/8 6.94 26 5.520 1 2 1/2 3 3/4 1 7/8 7.54 30 6.320 1 2 1/2 3 3/4 1 7/8 9.40 32 6.720 1 2 1/2 3 3/4 1 7/8 10.46 35 7.320 1 2 1/2 3 3/4 1 7/8 12.28 36 7.520 1 3/16 2 3/4 4 2 1/8 13.94 40 8.320 1 3/16 2 3/4 4 2 1/8 16.54 42 8.720 1 3/16 2 3/4 4 2 1/8 17.92 45 9.310 1 3/16 2 3/4 4 2 1/8 20.30 48 9.910 1 3/16 2 3/4 4 1/4 2 3/8 24.08 52 10.710 1 3/16 2 3/4 4 1/4 2 3/8 27.42 54 11.110 1 3/16 2 3/4 4 1/4 2 3/8 29.16 60 12.300 1 5/16 3 4 1/2 2 3& Related Products ANSI 35B-3 37T Triplex Chain Sprocket 100B-2 ASA Duplex Sprocket 35B-1 32T Simplex Taper lock Sprocket ANSI 35B-2 13T Double Chain Sprocket ANSI 35A-3 17T Plate wheels Triplex sprocket ANSI 35B-3 49T Triplex Chain Sprocket
