Product Item:HXPT-080

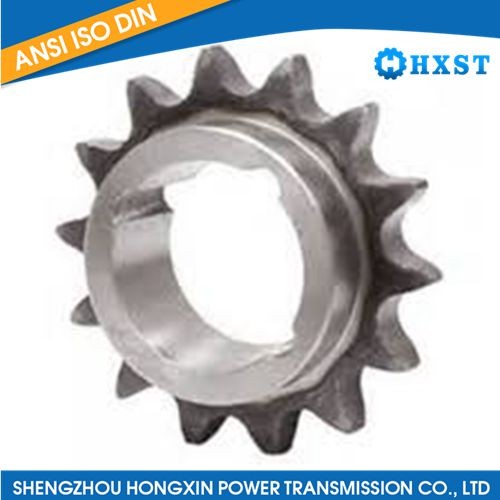

Model: 35B-1 Simplex Taper lock Sprocket
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
35TL42.1610 Sprocket
for 1610 Taper Bushing
No.35 ANSI Sprocket
42 Teeth
For #35 Single Strand Chain with
3/8 Inch Pitch
3/16 Inch Roller Width
0.200 Inch Roller Diameter
0.169 Inch Sprocket Tooth Width(B1)
5.229 Inch Outside Diameter (Approximate)
5.018 Inch Pitch Diameter
3.25 Inch Hub Diameter(C)
1 Inch Total Length Through Bore(L)
