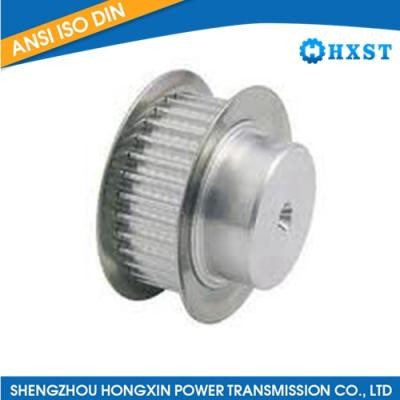

HTP 14M-115 Timing Pulley
  1. HTP 14M-115 Timing Pulley

HTP 14M-115 Timing Pulley

Product Item:HXST-267

Model:HTP 14M-115 Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

HTP 14M-115 Timing Pulley , 14m timing belt , htd 14m pulley , timing pulley pitch
Send InquiryLive chat

Description

HTP 14M-115 Timing Pulley is a specific type of timing pulley used in power transmission systems. Here's some information about this particular pulley:

Size: The designation "14M-115" indicates the pitch size and belt length. In this case, it refers to a 14mm pitch size and a belt length of 115 teeth.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Timing Belt Compatibility: The 14M-115 designation corresponds to a specific tooth profile and pitch size, which must match with the corresponding timing belt for proper operation and synchronization in the power transmission system.
Application: Timing pulleys are commonly used in various industrial applications where precise motion control and synchronization are required, such as conveyors, robotics, printing machinery, and CNC machines


14M
PITCH - 14 mm
FOR BELT WIDTH - 115 mm

Code Type Material Teeth dp de Df Dm Di F L d n◦ flange
28 14M 115 2F St 28 124,78 122,12 127 100 133 148 32 400
3014M 115 2F St 30 133,69 130,99 138 100 133 148 32 401
32 14M 115 2F St 32 142,60 139,88 154 100 133 148 32 403
34 14M115 2F St 34 151,52 148,79 160 100 133 148 32 404
36 14M 115 2F St 36 160,43 157,68 168 120 133 148 32 405
38 14M 115 2F St 38 169,34 166,60 183 120 133 148 32 406
40 14M 115 2F St 40 178,25 175,49 188 135 133 148 32 407
44 14M 115 2F St 44 196,08 193,28 211 140 133 148 32 411
48 14M 115 2F St 48 213,90 211,11 226 150 133 148 32 412
56 14M 115 7F GG 56 249,55 246,76 256 150 133 148 32 416
64 14M 115 7F GG 64 285,21 282,41 296 150 240 133 133 32 418
72 14M 115 8 GG 72 320,86 318,06 150 278 133 133 32
80 14M 115 8 GG 80 356,51 353,71 150 314 133 133 32
90 14M 115 8 GG 90 401,07 398,28 150 358 133 133 32
112 14M 115 8 GG 112 499,11 496,32 150 456 133 133 32
144 14M 115 8 GG 144 641,71 638,92 165 600 133 133 32
168 14M 115 8 GG 168 748,66 745,87 165 706 133 133 32
192 14M 115 8 GG 192 855,62 852,82 165 813 133 133 32
