Product Item:HXST-051

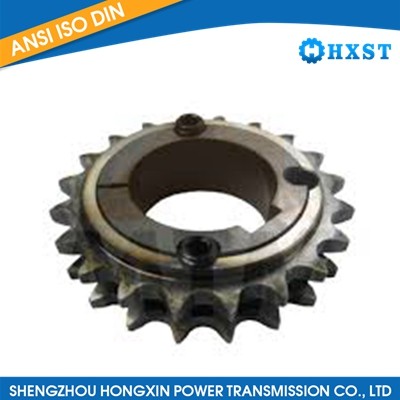

Model: 10B-2 Duplex Taper lock Sprocket
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
|
No. of teeth |
pitch circle |
tip circle |
hub-dia. |
for |
total |
weight |
|
|
Ø |
Ø |
Ø |
bush |
length |
approx |
||
|
d0 |
dk |
dn |
L |
kg |
|||
|
13 |
66,32 |
73,0 |
– |
1210 |
25,5 |
0,30 |
|
|
15 |
76,36 |
83,0 |
– |
1210 |
25,5 |
0,37 |
|
|
17 |
86,36 |
93,0 |
– |
1610 |
25,5 |
0,80 |
|
|
19 |
96,45 |
103,3 |
– |
1610 |
25,5 |
0,71 |
|
|
20 |
101,49 |
108,4 |
– |
1610 |
25,5 |
0,70 |
|
|
21 |
106,52 |
113,4 |
– |
1610 |
25,5 |
1,02 |
|
|
22 |
111,55 |
118,0 |
– |
1610 |
25,5 |
1,30 |
|
|
23 |
116,58 |
123,4 |
– |
1610 |
25,5 |
1,60 |
|
|
25 |
126,66 |
134,0 |
90 |
2012 |
32,0 |
1,90 |
|
|
27 |
136,75 |
144,0 |
90 |
2012 |
32,0 |
2,40 |
|
|
30 |
151,87 |
158,8 |
90 |
2012 |
32,0 |
2,60 |
|
|
38 |
192,24 |
199,2 |
108 |
2517 |
45,0 |
4,69 |
|
|
45 |
227,58 |
235,0 |
110 |
2517 |
45,0 |
4,40 |
|
|
57 |
288,18 |
296,0 |
124 |
2517 |
45,0 |
5,80 |
|
|
76 |
384,16 |
392,1 |
160 |
3020 |
51,0 |
7,10 |
|
|
95 |
480,14 |
488,5 |
160 |
3020 |
51,0 |
12,70 |
|
