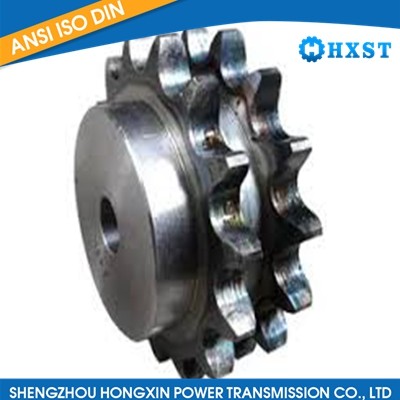

140B-2 Stock Sprocket

Description

140B-2 stock sprocket is a specific type of sprocket that features a standard configuration. Here are some key features of the 140B-2 stock sprocket:

Standard Sprocket Design: The "stock" designation indicates that the sprocket has a commonly used and readily available design.

140B-2 Designation: The "140B-2" designation specifies the specific model or part number for the stock sprocket. It may include information about the tooth count, pitch, bore size, and other relevant specifications.

Teeth Configuration: The 140B-2 stock sprocket will have teeth designed to match the pitch and width of the corresponding roller chain. The tooth profile and configuration ensure proper engagement and smooth operation with the chain.

Material: Stock sprockets like the 140B-2 can be made from various materials, such as carbon steel or stainless steel. The choice of material depends on factors such as load requirements, environmental conditions, and cost considerations.

Applications: Stock sprockets are commonly used in a wide range of power transmission systems across various industries. They are suitable for applications such as machinery, conveyors, agricultural equipment, or industrial machinery.

Product details

No. Teeth	Outside Diameter Do	Bore (Inches)		Hub (Inches)		Weight Lbs. (App)
		Stock d	Rec. Max.	Dia. BD	Length Thru BL
11	7.010	1 1/2	2 3/4	4 1/4	2 1/4	11.3
12	7.580	1 1/2	3	4 1/2	2 1/4	13.2
13	8.150	1 1/2	3 3/4	5 1/2	2 3/8	18.9
14	8.720	1 1/2	3 3/4	5 1/2	2 3/8	20.4
15	9.280	1 1/2	4 1/4	6 1/4	2 3/8	25.1
16	9.850	1 1/2	4 1/4	6 1/4	2 1/2	27.9
17	10.410	1 1/2	4 1/4	6 1/4	2 1/2	29.8
18	10.980	1 1/2	4 1/4	6 1/4	2 1/2	32.0
19	11.540	1 1/2	4 1/4	6 1/4	2 1/2	34.1
20	12.100	1 1/2	4 1/4	6 1/4	2 1/2	36.0
21	12.660	1 1/2	4 1/4	6 1/4	2 1/2	38.7
22	13.220	1 1/2	4 1/4	6 1/4	2 1/2	40.6
23	13.780	1 1/2	4 1/4	6 1/4	2 1/2	42.1
24	14.340	1 1/2	4 1/4	6 1/4	2 1/2	46.2
25	14.900	1 1/2	4 1/4	6 1/4	2 1/2	47.8
26	15.460	1 1/2	4 1/4	6 1/4	3	57.2
27	16.020	1 1/2	4 1/4	6 1/4	3	58.5
28	16.580	1 1/2	4 1/4	6 1/4	3	62.2
30	17.700	1 1/2	4 1/4	6 1/4	3	69.8
32	18.820	1 1/2	4 1/4 &l Related Products ANSI 35B-2 60T Double Chain Sprocket ANSI 40A-2 49T Double Plate wheel chain sprocket LA5 A/B Locking Ring BLPA-25T Press Charger Aluminum Body 80B-2 Sprockets With Split Taper Bushing
