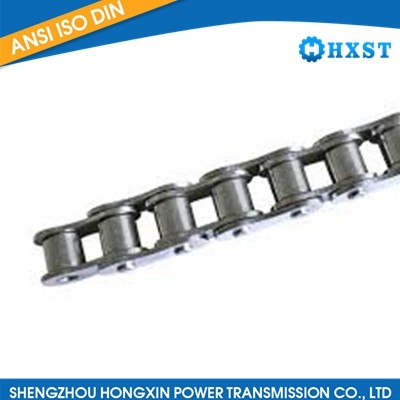

Zinc-plated chain

Zinc-plated chain,dimensionally identical to short-pitch and double-pitch equivalents, are most commonly used for outdoor situations, or in a mildly corrosive atmosphere. Nickel-plating of all components prior to assembly assures uniform coverage to produce maximum effect of the plating process. While selecting chains, please bear in mind that the corrosion resistance of nickel-plated chains is far less than that of stainless steel chains. Though the tensile strength and wear resistance are almost the same, the fatigue strength is about 10 to 15% less than as it short-pitch or double-pitch equivalents.In the follow form,you can see the main specification from 25ZP to 160ZP,04BZP to 32BZP.

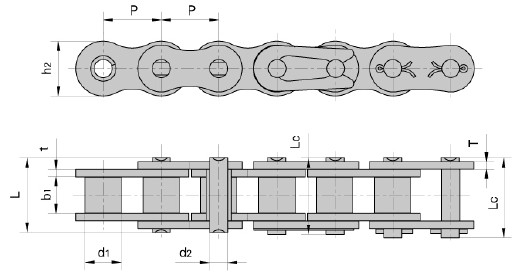

Chain  no.	Pitch	Roller Diameter	Width Between Inner plate	Pin Diameter	Pin Length		Inner Plate depth		Plate thickness	Breaking load	Weight Per Meter
	p	D1 Max	B1 min	D2 Max	L Max	Lc Max	H2 Max	T Max		Q	q
	mm	mm	Mm	Mm	mm	mm	Mm	mm		KN/LB	Km/m
25ZP	6.35	3.30	3.18	2.31	7.90	8.40	6.00	0.80		3.50/795	0.15
35ZP	9.525	5.08	4.77	3.58	12.40	13.17	9.00	1.30		7.90/1795	0.33
41ZP	12.70	7.77	6.25	3.58	13.75	15.00	9.91	1.30		6.67/1516	0.41
40ZP	12.70	7.95	7.85	3.96	16.60	17.80	12.00	1.50		14.10/3205	0.62
50ZP	15.875	10.16	9.40	5.08	20.70	22.20	15.09	2.03		22.20/5045	1.02
60ZP	19.05	11.91	12.57	5.94	25.90	27.70	18.00	2.42		31.80/7227	1.50
80ZP	25.40	15.88	15.75	7.92	32.70	35.00	24.00	3.25		56.70/12886	2.60
100ZP	31.75	19.05	18.90	9.53	40.40	44.70	30.00	4.00		88.50/20114	3.91
120ZP	38.10	22.23	25.22	11.10	50.30	54.30	35.70	4.80		127.00/28864	5.62
140ZP	44.45	25.40	25.22	12..70	54.40	59.00	41.00	5.60		172.40/39182	7.50
160ZP	50.80	28.58	31.55	14.27	64.80	69.60	47.80	6.40		226.80/51545	10.10
04BZP	6.00	4.00	2.80	1.85	6.80	7.80	5.00	0.60		3.00/682	0.11
05BZP	8.00	5.00	3.00	2.31	8.20	8.90	7.10	0.80		5.00/1136	0.20
06BZP	9.525	6.35	5.72	3.28	13.15	14.10	8.20	1.30		9.00/2045	0.41
08BZP	12.70	8.51	7.75	4.45	16.70	18.20	11.80	1.60		18.00/4091	0.69
10BZP	15.875	10.16	9.65	5.08	19.50	20.90	14.70	1.70		22.40/5091	0.93
12BZP	19.05	12.07	11.68	5.72	22.50	24.20	16.00	1.85		29.00/6591	1.15
16BZP	25.40	15.88	17.02	8.28	36.10	37.40	21.00	4.15/3.1		60.00/13636	2.71
20BZP	31.75	19.05	19.56	10.19	41.30	45.00	26.40	4.5/3.5		95.00/21591	3.70
24BZP	38.10	25.40	25.40	14.63	53.40	57.80	33.20	6.0/4.8		160.0/36364	7.10
28BZP	44.45	27.94	30.99	15.90	65.10	69.50	36.70	7.5/6.0		200.0/45455	8.50
32BZP	50.80	29.21	30.99	17.81	66.00	71.00	42.00	7.0/6.0		250.0/56818	10.25
