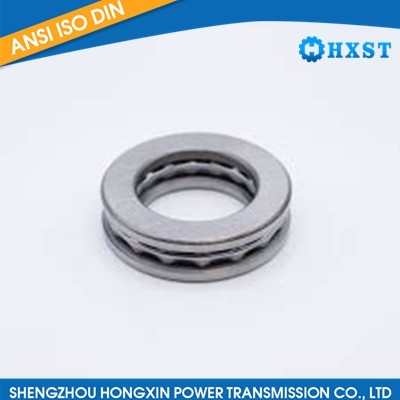

51100 Series Metric Thrust Ball Bearing

51100 series metric thrust ball bearings are a specific type of bearing commonly used in applications where axial loads need to be supported. Here's some information about the 51100 series metric thrust ball bearings:

Design: The 51100 series metric thrust ball bearings have a compact design and consist of a shaft washer, housing washer, and a set of steel balls held in a cage. They are typically made from high-quality steel for durability and reliable performance.

Axial Load Capacity: The 51100 series metric thrust ball bearings are designed to primarily support axial loads in one direction. They can handle both light and moderate axial loads and are commonly used in applications such as automotive transmissions, machine tools, and industrial equipment.

Bearing Dimensions: The 51100 series metric thrust ball bearings have specific dimensions based on the ISO standard. The bore diameter is typically 10mm, and the outside diameter is around 24mm. The width of the bearing can vary depending on the specific model within the series.

Lubrication: Proper lubrication is important for the smooth operation and extended lifespan of the bearings. The 51100 series metric thrust ball bearings are often lubricated with grease or oil. Lubrication holes may be present in the housing washer to facilitate lubricant distribution.

Cage Options: The steel balls in the 51100 series metric thrust ball bearings are held in place by a cage. The cage material can vary, with options including steel, brass, or synthetic materials. The cage helps maintain separation and proper alignment of the balls.

Single-Direction Thrust: The 51100 series metric thrust ball bearings are designed to support axial loads in one direction only. They are not suitable for radial loads or combined radial and axial loads. For applications requiring bidirectional axial load support, other types of thrust bearings should be considered

51100 Series Metric Thrust Ball Bearing

DIMENSIONS IN MILLIMETERS
