T2.5-16 Timing Pulley
  1. T2.5-16 Timing Pulley

T2.5-16 Timing Pulley

Product Item:HXST-236

Model:T2.5-1.6 Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

T25-16 Timing Pulley , t25 timing pulley , t25 timing belt , pulley 9/16 bore
Send InquiryLive chat

Description

T2.5-16 Timing Pulley is a specific type of timing pulley used in power transmission systems. Here's some information about this particular pulley:

Size: The designation "T2.5-16" indicates the tooth profile and belt length. In this case, it refers to a T (Tooth) tooth profile with a 2.5mm pitch and a belt length of 16 teeth.
Material: The material used for this timing pulley can vary but is typically made from aluminum, steel, or other durable materials depending on the application requirements.
Belt Profile Compatibility: The T2.5 designation corresponds to a specific tooth profile, which must match with the corresponding timing belt that also has a T2.5 profile for proper operation and synchronization in the power transmission system.
Application: Timing pulleys are commonly used in various industrial applications where precise motion control and synchronization are required, such as robotics, printers, small machinery, and automation systems.


Product details

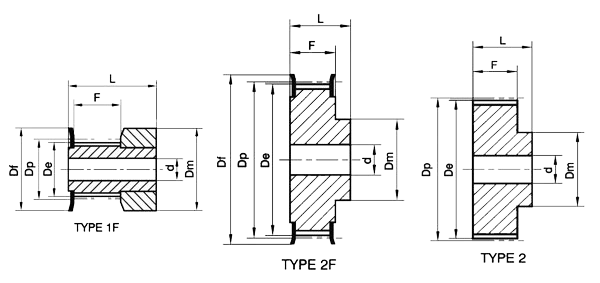

TIMING PULLEYS T2.5


T2.5-16

SPC TYPE Z De Df Dm F L d
16-T2.5-12 1F 12 9 13 12 9 16 -
16-T2.5-14 1F 14 10.6 15 14 9 16 -
16-T2.5-15 1F 15 11.4 15 15 9 16 -
16-T2.5-16 1F 16 12.2 16 16 9 16 -
16-T2.5-18 2F 18 13.8 17.5 10 10 16 -
16-T2.5-19 2F 19 14.6 18 10 10 16 -
16-T2.5-20 2F 20 15.4 19.5 11 10 16 -
16-T2.5-22 2F 22 17 23 11 10 16 -
16-T2.5-24 2F 24 18.55 23 12 10 16 -
16-T2.5-25 2F 25 19.35 23 13 10 16 -
16-T2.5-26 2F 26 20.15 25 14 10 16 -
16-T2.5-28 2F 28 21.75 25 14 10 16 -
16-T2.5-30 2F 30 23.35 28 16 10 16 6
16-T2.5-32 2F 32 24.95 32 16 10 16 6
16-T2.5-36 2F 36 28.1 37 20 10 16 6
16-T2.5-40 2F 40 31.3 38 22 10 16 6
16-T2.5-44 2 44 34.5 - 24 10 16 6
16-T2.5-48 2 48 37.7 - 26 10 16 6
16-T2.5-60 2 60 47.25 - 34 10 16 8
