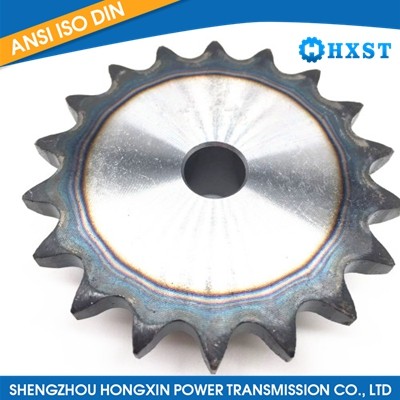

60A-1 Plate Wheel Sprocket

Description

60A-1 plate wheel sprocket is a specific type of sprocket that features a plate wheel design. Here are some key features of the 60A-1 plate wheel sprocket:

Plate Wheel Design: The "plate wheel" designation indicates that the sprocket has a design where the teeth are formed directly on a flat plate. This design allows for easy attachment to various equipment or machinery.

60A-1 Designation: The "60A-1" designation specifies the specific model or part number for the plate wheel sprocket. It may include information about the tooth count, pitch, bore size, and other relevant specifications.

Teeth Configuration: The 60A-1 plate wheel sprocket will have teeth designed to match the pitch and width of the corresponding roller chain. The tooth profile and configuration ensure proper engagement and smooth operation with the chain.

Material: Plate wheel sprockets like the 60A-1 can be made from various materials, such as carbon steel or stainless steel. The choice of material depends on factors such as load requirements, environmental conditions, and cost considerations.

Applications: Plate wheel sprockets are commonly used in power transmission systems where precise positioning or easy mounting is required. The 60A-1 plate wheel sprocket can be utilized in various applications such as machinery, conveyors, or industrial equipment.

Product details

(Dimension : mm)

Sprocket No.		Outside Dia. Do	Pitch Dia. Dp	Bore Dia. d		Weight (kg)	Material	Teeth
Type	Teeth			Stock Bore	Min.
K60A	10	68	61.65	14	16	0.27	Mild Steel	10
	11	76	67.62	14	16	0.30		11
	12	83	73.60	14	16	0.38		12
	13	89	79.60	14	16	0.45		13
	14	95	85.61	16	18	0.50		14
	15	101	91.62	16	18	0.60		15
	16	107	97.65	16	18	0.65		16
	17	113	103.67	16	18	0.75		17
	18	119	109.71	16	18	0.84		18
	19	126	115.74	16	18	0.93		19
	20	132	121.78	16	18	1.05		20
	21	138	127.82	16	18	1.15		21
	22	144	133.86	16	18	1.25		22
	23	150	139.90	16	18	1.40		23
	24	156	145.95	16	18	1.50		24
	25	162	151.99	16	18	1.62		25
	26	168	158.04	16	18	1.78		26
	27	174	164.09	20	22	1.90		27
	28	180	170.14	20	22	2.05		28
	29	187	176.20	20	22	2.20		29
	30	193	182.25	20	22	2.35		30
	31	199	188.30	20	22	2.50		31
	32	205	194.35	20	22	2.68		32
	33	211	200.41	20	22	2.85		33
	34	217	206.46	20	22	3.02		34
	35	223	212.52	20	22	3.00		35
	36	229	218.57	20	22	3.40		36
	37	235	224.63	20	22	3.60		37
	38	241	230.69	20	22	3.80		38
	39	247	236.74	20	22	4.00		39
	40	253	242.80	20	22	4.20		40
	41	260	248.86	20	22	4.45		41
	42	266	254.92	20	22	4.63		42
	43	272	260.98	20	22	4.85		43
	44	278	267.03	20	22	5.10		44
	45	284	273.09	20	22	5.30		45
	46	290	279.15	20	22	5.59		46
	47	296	285.21	20	22	5.83		47
	48	302	291.27	20	22	6.10		48
	49	308	297.33	20	22	6.34		49
	50	314	303.39	20	22	6.60		50
	51	320	309.45	20	22	6.87		51
	52	326	315.51	20	22	7.15		52
	54	338	327.63	20	22	7.70		54
	55	345	333.69	20	22	8.00		55 Related Products ANSI 35B-2 43T Double Chain Sprocket Forging steel intercept valve ANSI 35B-3 29T Triplex Chain Sprocket WSA WSK Standard Chain Attachments ANSI 40A-3 36T Triplex Plate wheel chain sprocket Large Corn Harvester Chain Sprocket
